NDT Digital Vibration Testing Calibrator HG5026

    Buy cheap NDT Digital Vibration Testing Calibrator HG5026 from wholesalers

    Buy cheap NDT Digital Vibration Testing Calibrator HG5026 from wholesalers
    • Buy cheap NDT Digital Vibration Testing Calibrator HG5026 from wholesalers

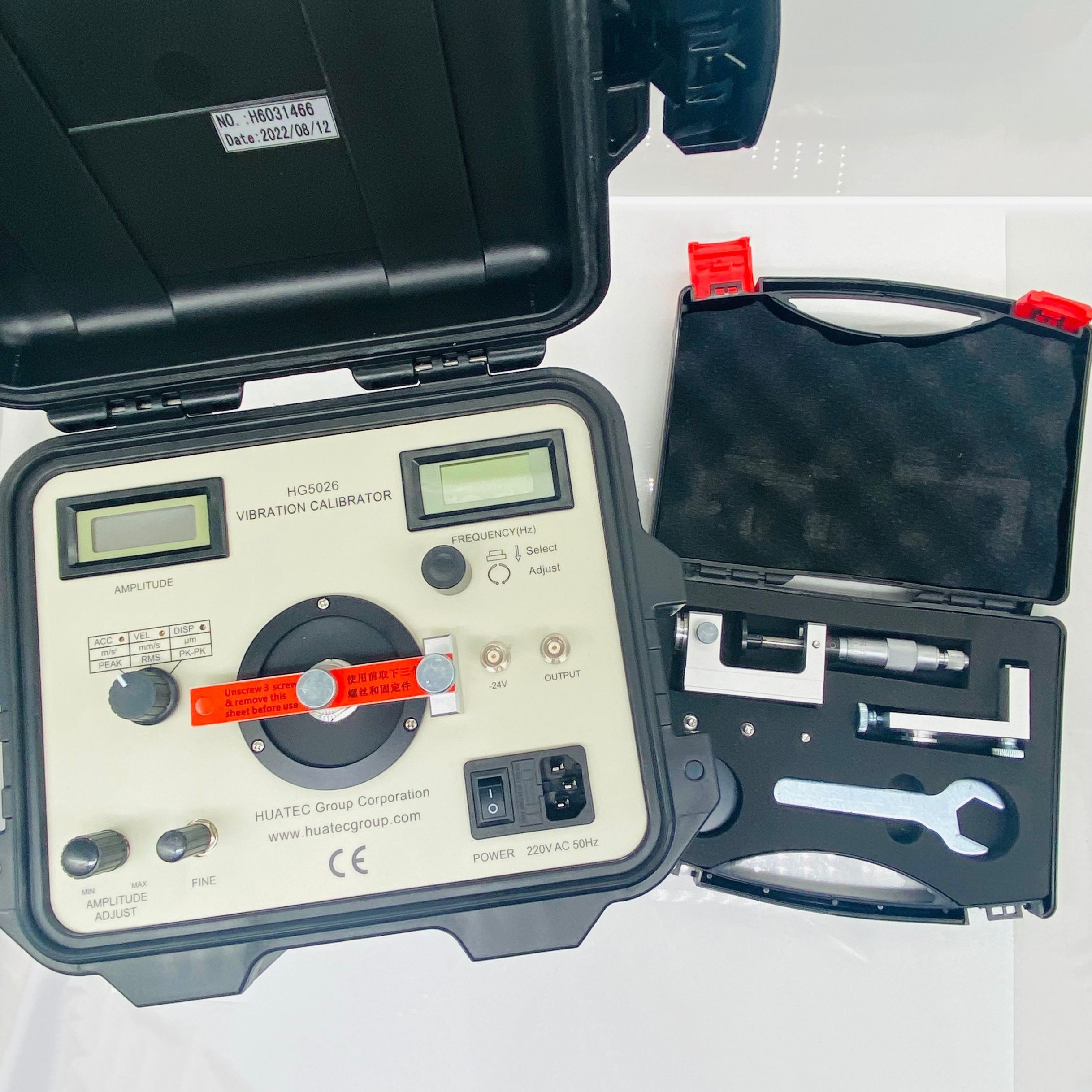

    NDT Digital Vibration Testing Calibrator HG5026

    Ask Lasest Price
    Brand Name : HUATEC
    Model Number : HG5026
    Payment Terms : Western Union, T/T, Paypal
    • Product Details
    • Company Profile

    NDT Digital Vibration Testing Calibrator HG5026

    NDT Digital Vibration Testing calibrator HG5026


    HG-5026 vibration calibrator can be used to calibrate vibration accelerometer, velocity and proximity transducer and also a vibration measuring instrument. Standard sine signal vibration at any frequency from 1 to 1280 Hz can be defined in the calibrator. The amplitude of the acceleration, velocity and displacement, can be defined through potentiometers and shown on digital displays. Either horizontal or vertical vibration can be generated. HG-5026 combines sine signal generator, power amplifier, standard transducer, vibration meter and a shaker in one and features a small volume, high accuracy and easy operation. It can be used either in laboratory or on site.


    Wt


    Freq

    <100g<250g<500g
    a(m/S2)v(mm/S)d(μm)a(m/S2)v(mm/S)d(μm)a(m/S2)v(mm/S)d(μm)
    10Hz2.52813003.54018004452000
    20Hz1585190010601300528640
    40Hz6017020003510011001235380
    80Hz10014180040603201420110
    160Hz7553150352570128.524
    320Hz501825301015103.55
    640Hz3053203.5261*
    1280Hz232*100.9*50.4*

    Frequency range & accuracy: 1 to 1280 Hz +0.01%
