    Measurement 0 mm ~6000mm FD510 Portable Ultrasonic Flaw Detector NDT Instrument

    Measurement 0 mm ~6000mm FD510 Portable Ultrasonic Flaw Detector NDT Instrument


    This is a portable industrial non-destructive flaw detector, which can rapidly, easily and accurately inspect, locate, evaluate and diagnose various defects (crack, inclusion and pinhole, etc.) in a workpiece without destruction. It can be used both in a lab and field. The instrument can be widely used in any fields that need defect inspection and quality controlling e.g. manufacturing industry, iron & steel metallurgical industry, metalworking, chemical industry, etc., also be broadly used in the active safety inspection and service-life evaluation in such fields as aerospace, railway transportation and boiler pressure vessels, etc. It is an essential instrument for non-destructive inspection industry.


    When the ultrasonic wave propagates in a job, one can detect the defect in it by the influence on the propagation of ultrasonic wave based on the acoustic characteristic demonstrated by the defect in the material. Based on this principle, by using ultrasonic wave one can measure such defects as crack, pinhole and inclusion in such media as metal, non metal and composite, etc.

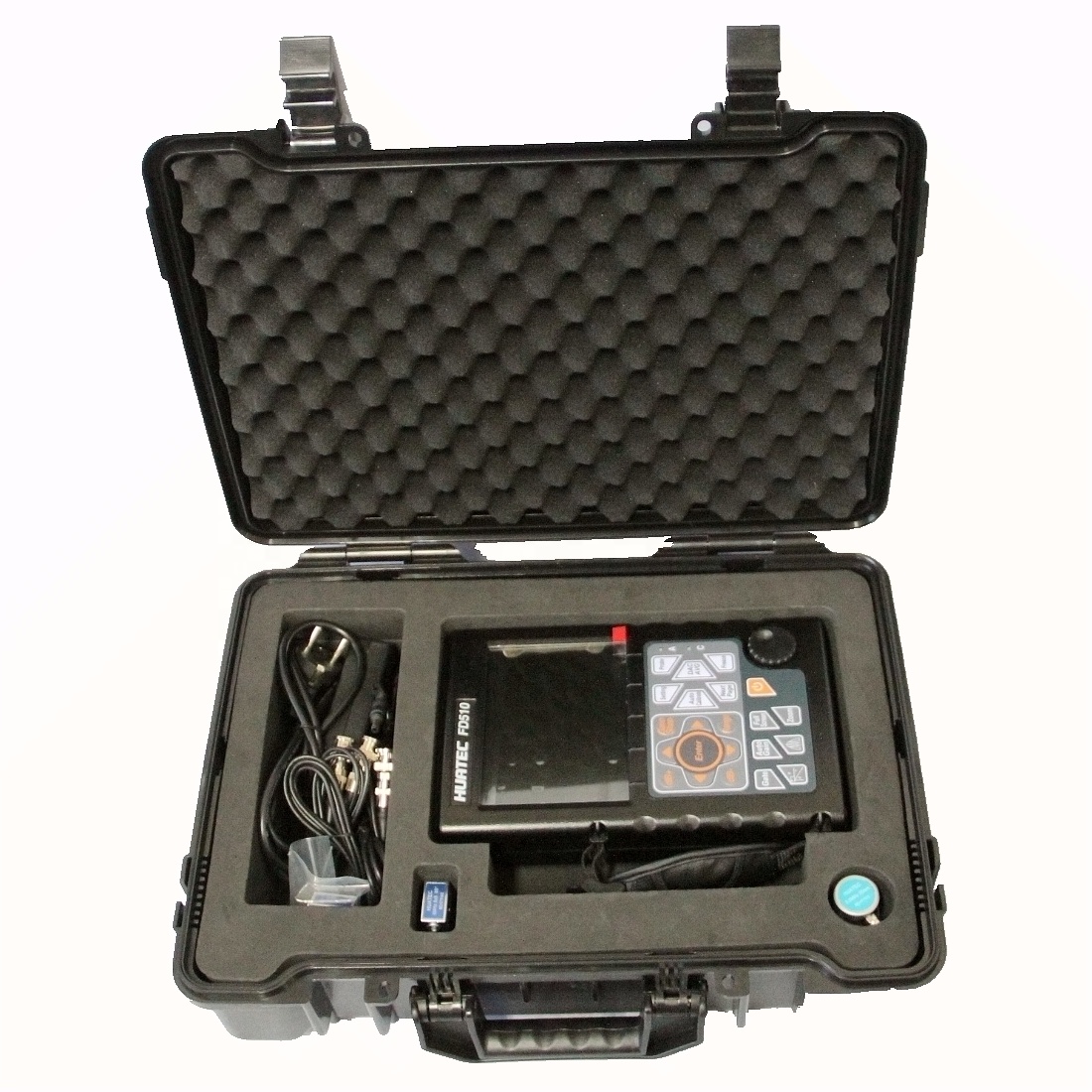

    Standard Configuration

    Designation

    Quantity

    Main unit1
    1.5A/9V power adaptor1
    probe connecting cable2
    Carrying case1
    Instruction manual1
    Straight probe3/4” 2.5MHz (One)
    Angle probe8×9 60°4MHz (One)

    Options

    Designation

    Quantity

    USB cableUSB
    Communication software for PC1 set

    Technical Parameters

    Range of scanning: 0 mm ~6000 mm

    Resolution for scanning: 0.1mm (2.5mm ~100mm)

    1mm (100 mm ~6000mm)

    Range of gain: 0dB ~110 dB

    D-Delay: -20µs~+3400µs

    P-Delay: 0µs~99.99µs

    Sound speed: 1000 m/s~15000m/s


    Operation Environment
    Temperature: -20℃~50℃
    Humidity: 20%~90%RH
    Free of strong magnetic field and corrosion.
    Power supply
    Li battery 7.4V 4800mAh
    Overall Dimension and Weight
    Overall dimension: 238mm×160mm×50mm
    Weight: 1.0kg
