SRT-7300+ Roughness And Profile Measuring Instrument

Ask Lasest Price
Brand Name :	HUATEC
Model Number :	SRT-7300+
Certification :	ISO，CE，Gost
Payment Terms :	T/T, Western Union
Supply Ability :	100 sets per month
Delivery Time :	3-7 days

Add to Cart

Product Details
Company Profile

SRT-7300+ Roughness And Profile Measuring Instrument

SRT-7300+ Roughness And Profile Measuring Instrument

Application Field:

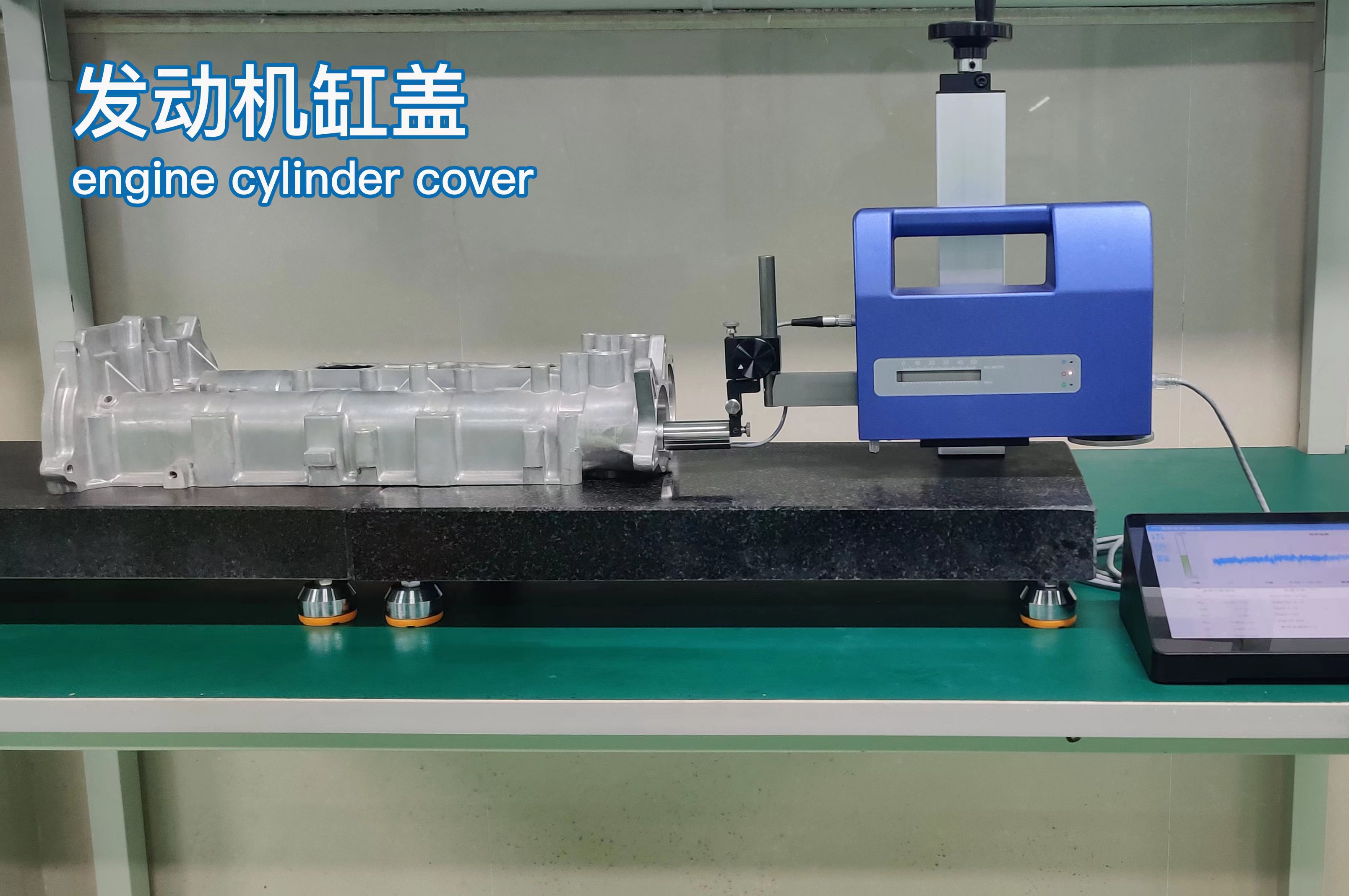

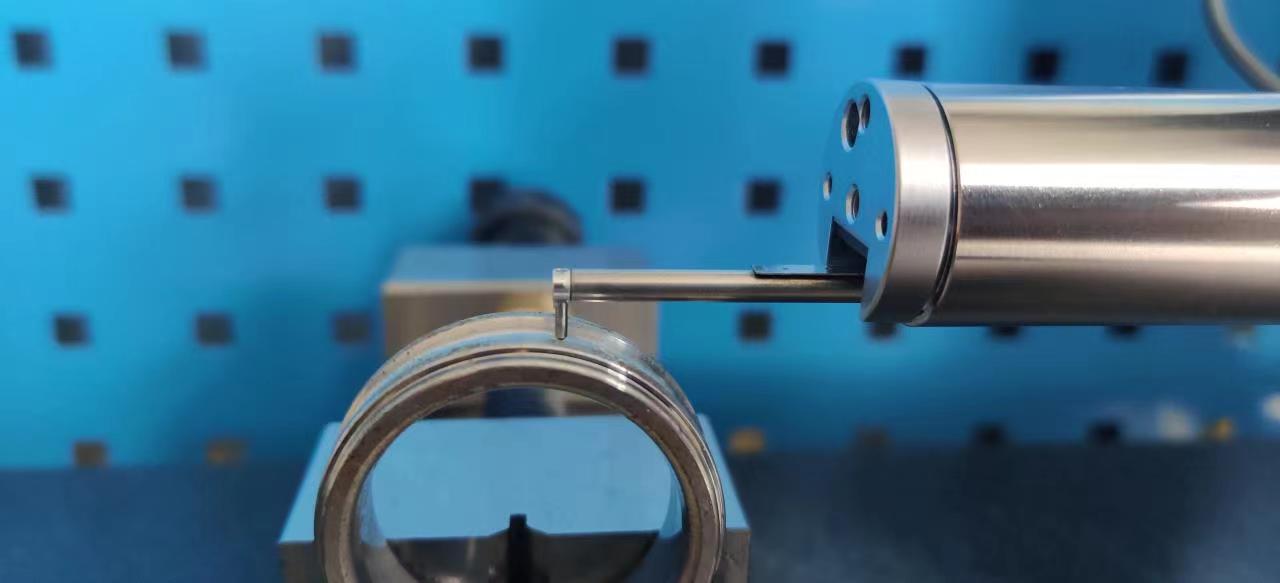

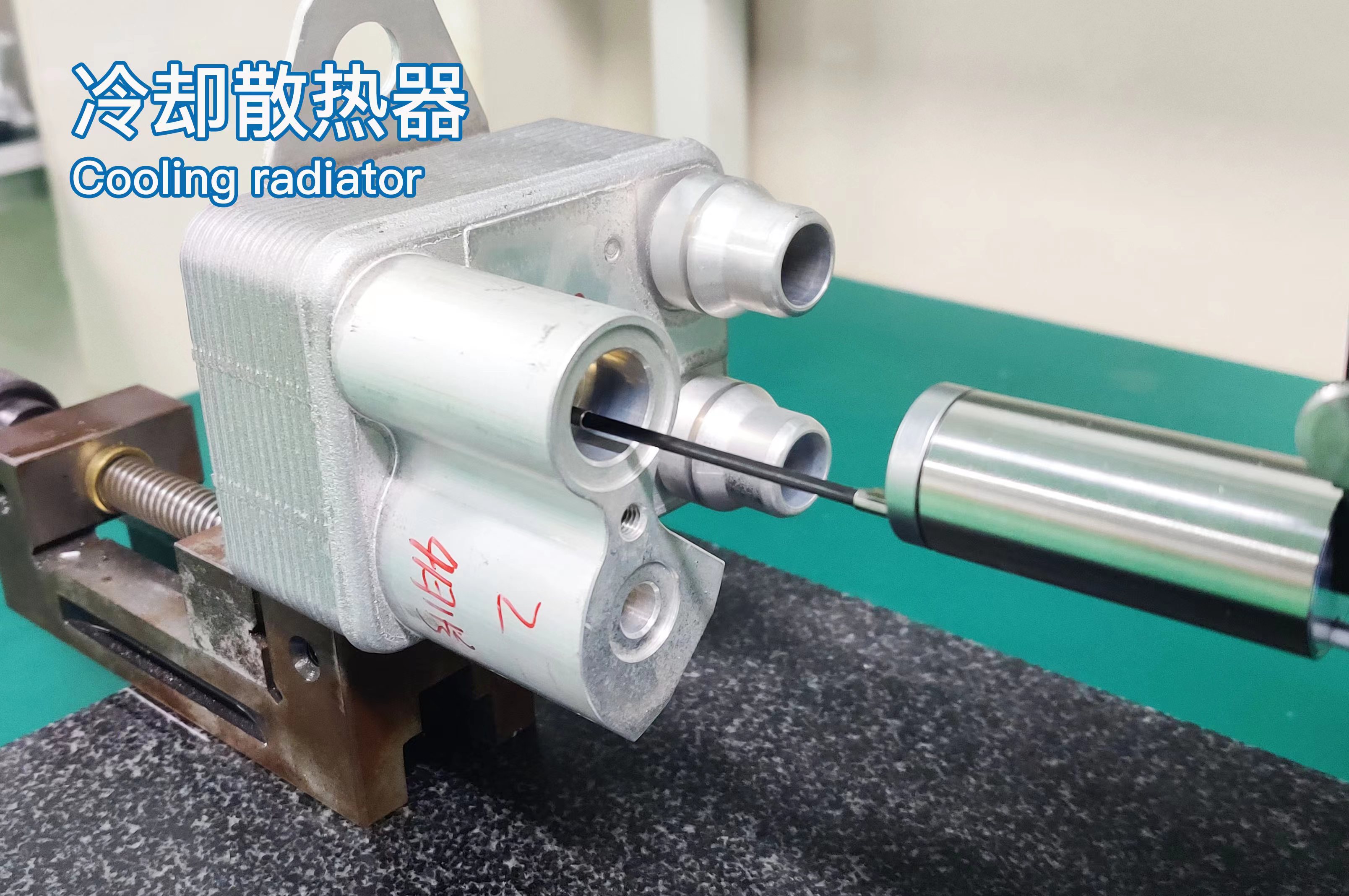

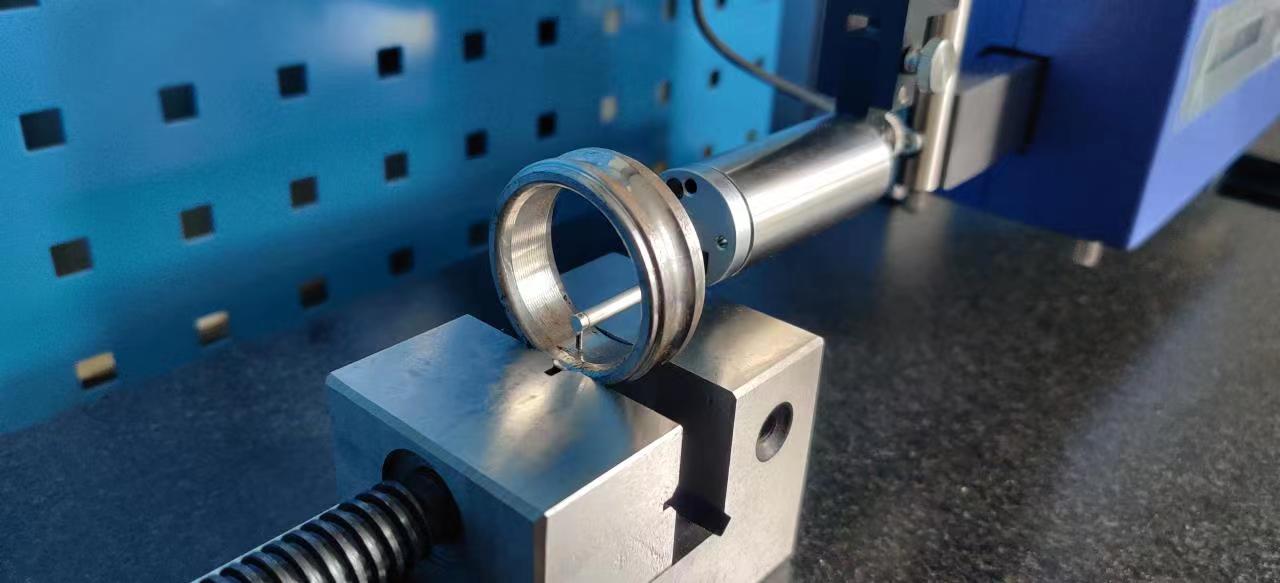

SRT-7300+ roughness and profile measuring instrument is a product fully in line with the latest ISO international standards. It is a multi-purpose portable instrument for evaluating the surface quality of parts. It has multiple parameters in line with multiple national and international standards. It can evaluate the roughness, waviness and original contour of a variety of parts. It can measure plane, cylindrical and cylindrical surfaces, inner hole surface and bearing raceway, etc. It has the characteristics of large measurement range, stable performance and high precision. It is suitable for production site, scientific research laboratory and enterprise measurement room. The corresponding parameters are calculated according to the selected measurement conditions, and the measurement results can be displayed on the LCD screen in the form of numbers and graphics, or output to the printer. The SRT-7300 can also be connected to a computer. The computer special analysis software can directly control the measurement operation and provide powerful advanced analysis functions.

The instrument performs parameter calculation on filter profile and direct profile, and all calculations comply with GB / t3505-2009 (product geometric technical specification (GPS), surface structure, profile method, terms, definitions and surface structure parameters).

Features:

1. Scratch depth and step height can be measured

2. 1000um super large range inductive sensor

3. Roughness, waviness and original contour parameters can be measured and graphics can be displayed.

4. There are two measurement methods with and without guide.

5. The sensor is connected with the host through the sensor lifting frame, and the height of the sensor can be adjusted without the help of the platform

Testing range	X direction		50mm
Testing range	Z direction		±1000μm
resolution	X direction		0.00016μm/±μm -0.016μm/±400μm
Drive	straightness		(0.05+2.5L/1000)μm (L；testing length(mm) )
Analysis item	Corresponding Standard		ISO1997,Din1990,ASME1995,JIS1994
	Parameters	Roughness	Ramax, Ramin, Ra, Rasd, Rqmax, Rqmin, Rq, Rqsd, Rzmax, Rzmin, Rz, Rzsd, Rt, R3z, Rcmax, Rcmin, Rc, Rcsd, Rpmax, Rpmin, Rp, Rpsd, Rvmax, Rvmin, Rv, Rvsd, Rsmmax, RSmmin, RSm, RSmsd, Pc, RΔamax, RΔamin, RΔa, RΔasd, RΔqmax, RΔqmin, RΔq, RΔqsd, Rλamax, Rλamin, Rλa, Rλasd, Rλqmax, Rλqmin, Rλq, Rλqsd, Lr, Rskmax, Rskmin, Rsk, Rsksd, Rkumax, Rkumin, Rku, Rkusd, Rmax, Rmin, RzImax, RzImin, Rz.I, Rz.Isd, Rsmax, Rsmin, RS, RSsd, Rsk.J, Rku.J, Rpm, Rpmsd, Rymax, Rymin, Ry, Rysd, Smmax, Smmin, Sm, Smsd, Smax, Smin, S, Ssd
		Waviness	Wamax, Wamin, Wa, Wasd, Wqmax, Wqmin, Wq, Wqsd, Wzmax, Wzmin, Wz, Wzsd, Wt, Wcmax, Wcmin, Wc, Wcsd, Wpmax, Wpmin, Wp, Wpsd, Wvmax, Wvmin, Wv, Wvsd, WSmmax, Wsmmin, WSm, WSmsd, WΔqmax, WΔqmin, WΔq, WΔqsd, Wskmax, Wskmin, Wsk, Wsksd, Wkumax, Wkumin, Wku, Wkusd, Wca, WC-q, WC-t, WC-v, WC-Sm
		Profile	Pa, Pq, Pt, Rz.J, Pc.I, Pp, Pv, PSm, PΔq, TITL, Psk.J, Pku.J, Rmax
		Special Roughness	Rk, Rpk, Rvk, Mr1, Mr2, V0, K, A1, A2
		Motif	NCRX, R, Rx, AR, NR, CPM, SR, SAR, W, Wx, AW, Wte, NW, SW, SAW
	Evaluation Curve		Roughness curve, waviness curve, profile curve, special roughness curve, roughness Motif curve, waviness Motif curve, envelope waviness curve
	Characteristic curve		Load curve , amplitude distribution curve
Filter	Filter		Gauss filter, FFT filter, 2RC filter
Filter	Filter stop		λc :0.25,0.8,2.5,8mm λs:0.25,0.8,2.5,8,25,80μm λf: 25mm
Evaluation length
Testing Speed			0.1mm/s,0.5mm/s,1.0mm/s,1.5mm/s,2.0mm/s
Sensor	Model		Standard Universal type
	Sensor mode		Differential inductance
	Testing range		±1000μm
	Testing needle		5μm R diamond 90°
	Testing Force		below 4mN
Operator	Display		7 inch color LCD touch screen
	Data output		SD card/bluetooth connecting PC/PC printer
	Language		Chinese/English
Size and Weight	Power/consumption		AC220V±10% Built-in rechargeable battery (AC transformer charging) , charging time 5 hours
	Power consumption		About 30VA( It can be measured up to 400 times on a full charge)
	Weight		Net weight 3.4Kg Gross weight 4.75Kg
	Setting Size		Driver 364(W)80(D)145(H) Operator 212(W)182(D)50(H)
	Package size		410mm(W)340(D)180(H)
