Led Industrial Film Observation View Lamp Hfv-2008

    Buy cheap Led Industrial Film Observation View Lamp Hfv-2008 from wholesalers

    Buy cheap Led Industrial Film Observation View Lamp Hfv-2008 from wholesalers
    • Buy cheap Led Industrial Film Observation View Lamp Hfv-2008 from wholesalers
    • Buy cheap Led Industrial Film Observation View Lamp Hfv-2008 from wholesalers

    Led Industrial Film Observation View Lamp Hfv-2008

    Ask Lasest Price
    Brand Name : HUATEC
    Model Number : HFV-2008
    Certification : CE
    Price : USD565-USD640/SET
    Payment Terms : T/T, Western Union,Paypal
    Supply Ability : 10 Sets/Month
    Delivery Time : 7-10 working days after receipt of your payment
    • Product Details
    • Company Profile

    Led Industrial Film Observation View Lamp Hfv-2008

    HFV-2008 LED Industrial Film Observation View Lamp


    HFV-2008 de force LED industrial film observation lamp is a new product developed by the latest standard for JB/T4730-2005 "non destructive testing of pressure equipment" and GB/T 19802-2005 "industrial radiographic negative film lamp". The imported ultra high power LED (SMD) was used as the light source of the viewing lamp. The tiny defects on the 5.0D blackening film can be clearly observed. In the foot switch mode, continuous work for 12 hours, photographic film does not curl.


    Technical parameters:

    ModelHFV-2008
    Maximum brightness205000cd/m2
    light sourceLED light source
    Observable blackness5.0D
    Dimming modeNonpolar continuous dimming
    Light source life≥10000 hours
    Color temperature9000K above, Blue ray, can reduce eye fatigue
    LightTwo choices of foot control and manual switch
    Observation screen size200*80mm
    Uniformity coefficient of observation screen≥95%
    12 hour surface temperature≤40℃
    power136W
    weight5.4kg

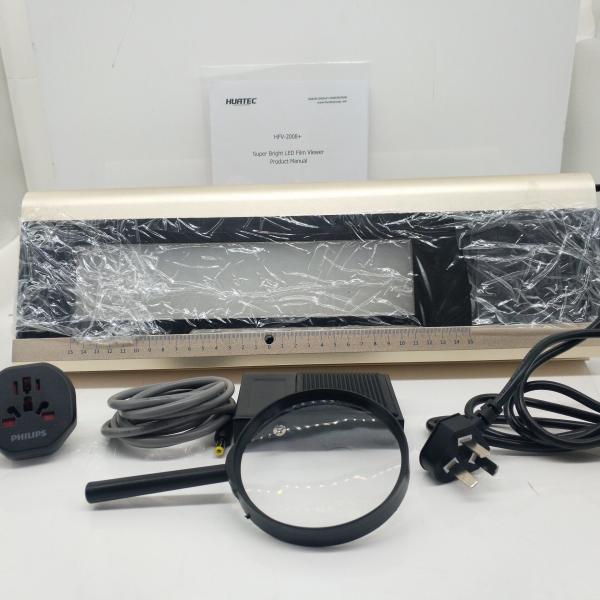

    HFV-2008 LED industrial film observation lamp is designed for the constant current driving mode for the view lamp, which ensures the normal work of LED to a greater extent, thus achieving the purpose of prolonging the life. The stepless dimming of the low voltage electronic mode further ensures the safety of the users. A magnifying glass and a slide gauge, which are integrated with the cabinet, are conveniently attached to the cabinet, so as to facilitate the evaluation of the micro defect levels on the negatives.

    Led Industrial Film Observation View Lamp Hfv-2008Led Industrial Film Observation View Lamp Hfv-2008Led Industrial Film Observation View Lamp Hfv-2008Led Industrial Film Observation View Lamp Hfv-2008
