HFE-100 Ferrite Content Meter Austenitic And Duplex Stainless Steels Delta Analyzer

Ask Lasest Price
Brand Name :	HUATEC
Model Number :	HFE-100
Certification :	CE
Price :	USD4370-USD4940/SET
Payment Terms :	T/T, Western Union,Paypal
Supply Ability :	10 Sets/YEAR
Delivery Time :	1 month after receipt of your payment

Add to Cart

Product Details
Company Profile

HFE-100 Ferrite Content Meter Austenitic And Duplex Stainless Steels Delta Analyzer

HFE-100 Austenitic and Duplex Stainless Steels Delta Ferrite Content Analyzer

1. Application

In the chemical industry the stress-bearing members of containers,pipes,reactor vessels and other plant are usually made of austenitic steel or duplex steel or cladding of austenitic chromium-nickel steel．The residual ferrite content must be within a specific range compatible with the mechanical strength requirements or the item concerned．

The HFE-100 was developed to facilitate accurate ferrite content measurements On welded seams and cladding items.

2.Technical data

The meter is mainly used for the determination of the ferrite content of welded austenitic steel or Duplex or cladding of austenitic chromium-nickel steel weld.

Range	0.1~80%Fe , ( 0.1~110)WRC-number
Precision	±2%(raneg0.1~30%Fe), ±3%(raneg30~80% Fe)
Operating temperature	5 ~ 40℃
Batteries	9v 6F22
Size	LX WX H 175X100X38mm
Accessories	Main unit, probe, two calibration sample piece, carrying-case , operating manual, certificate.

3. Feature

● LC-display,

● Two display modes (SAVE and FREE): single testing value or continuous testing value.

● Two units — Fe% and FN (WRC number).

● Statistics display together with measurements, mean value, Max value, Min value, standard deviation value.

● Auto power off function

● Meet standards of GB/T1954-2008,ISO 8249 and ANSI/AWS A4.2.

4. Notice

Notice

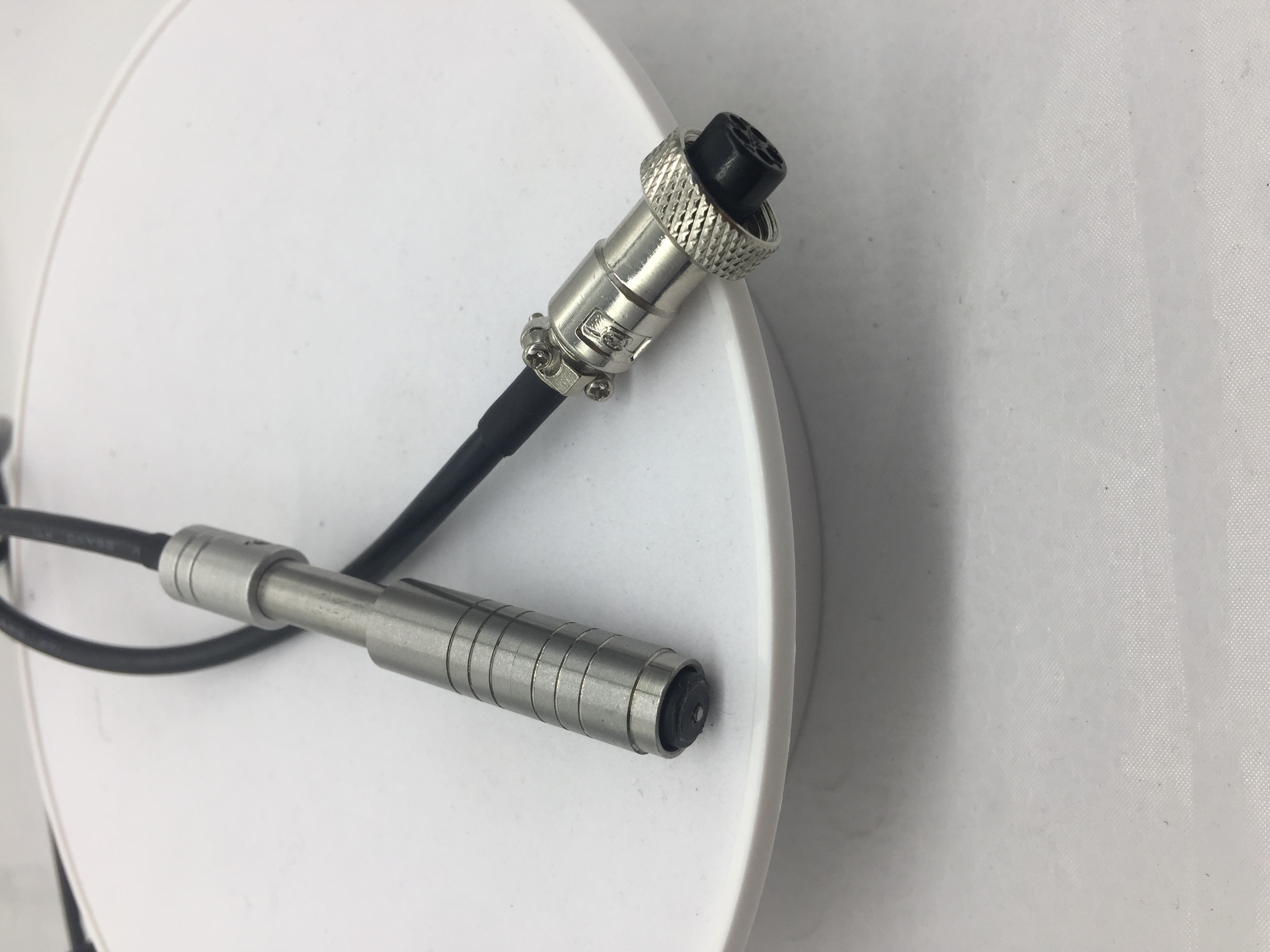

Probes are very sensitive element, on the measurement process it should be gently placed on the sample.

The following should be noted:

●The weld to be completely cooled before measurement, the probe can be in contact with the specimen gently.

● If using an external power supply, be sure to remove the battery first.

● Don’t disassemble or beat the probe, otherwise it will cause the parameter changes.

● Take off the battery for a long time without using the instrument.

HFE-100 Ferrite Content Meter Austenitic And Duplex Stainless Steels Delta Analyzer
