    2 Discs 500 R / Min Metallographic Sample Preparation Equipment For Grinding

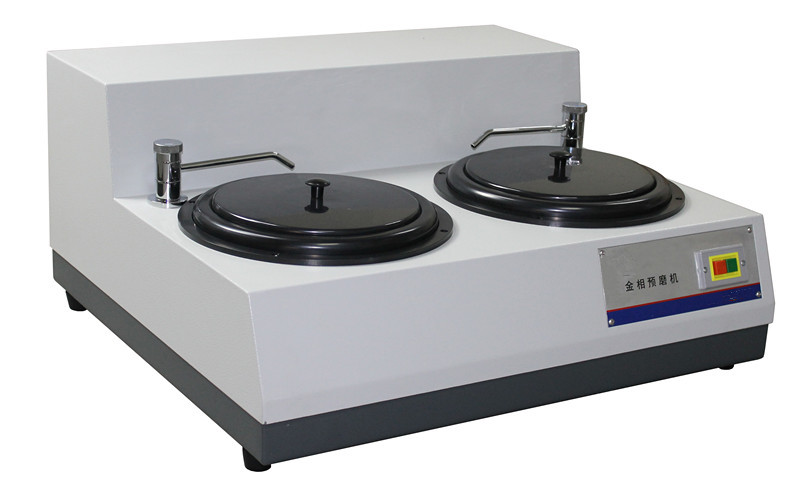

    HPA-2 Metallographic Grinding Machine


    In the process of metallographic specimen preparation, grinding is indispensable from the project before polishing. Grinding can improve the quality of sample preparation. Adapt to the needs of grinding more material. The disc diameter greater than the domestic similar products. The speed of the disc is different from domestic products, is an excellent sample grinding equipment.

    HPA-2 grinding working principle: First water flows into the spinning disc through the pipe. Sand paper float on the water. Under the effect of rotating centrifugal force of disc, water under sand paper throw out and become vacuum. Atmospheric pressure will press the sand paper on the disc closely, then you can do grinding wok. When rotate stop, the pressure disappear, sand paper is free to be taken down.



    Main Technical Specifications

    Disc diameter : 230mm

    Sand paper diameter:230mm

    Overall Dimension :740×640×320mm

    Disc rotating speed :400r/min,500r/min (Speed can be customized)

    Electromotor : 0.55kW, 380V ,50Hz

    Net weight : 55Kg


    Standard Delivery

    ItemQuantityItemQuantity
    Main Instrument1Sand paper10
    Aluminum ring2Inlet pipe Φ121
    Drain pipe1USB flash disk(specification in it )1

    Packaging and Shipping

    Packaging: Standard export package, wooden case

    Delivery: 3-15 days upon receipt of payment,depending on order quantity

    Shipping: Can be shipped by sea, air or other means per request.


    Our Services:

    Warranty: One year

    After sales service and maintenance: Lifelong
