    Precision Cutting Metallographic Sample Preparation Equipment Diamond Grinding Wheel

    Ask Lasest Price
    Brand Name : HUATEC
    Model Number : HC-150
    Certification : CE ISO
    Payment Terms : T/T, Western Union, L/C
    Supply Ability : 200 Sets per month
    • Product Details
    • Company Profile

    Precision Cutting Metallographic Sample Preparation Equipment Diamond Grinding Wheel

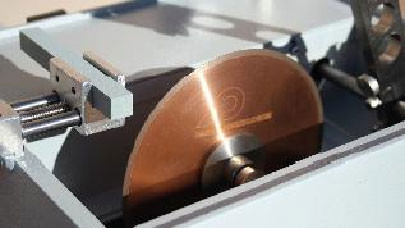

    HC-150 Metallographic Specimen Cutting Equipment


    HC-150 Cutting Equipment can be used to cut non-metallic material, circuit board, semiconductor, super hard material etc. Cutting precision 0.01mm. The machine equipped with many jigs, able to cut samples with irregular shape. It is an ideal precision cutting machine for the scientific research institutes and industrial enterprises.


    Product Features

    • Closed-loop control, speed precise control. Speed range:200-1500 r /min
    • Precision cutting, precision can reach 0.01mm
    • Cutting disc applied widely, use Ultra-thin diamond grinding wheel we supplied to get better result

    Main Technical Specifications

    ItemSpecificationRemark
    Grinding wheel (12.7mm,hole)150mm Ultra-thin cutting disc
    Speed range200-1500 r/mincustomizable
    Input voltagesingle phase 220V,50/60Hz
    Motor power125W
    Overall Dimension405Lx 405W x 330H mm
    Weight30kg

    Accessories

    ItemQuantityItemQuantity
    Single head jig132mm inset sample jig1
    Double head jig140mm inset sample jig1
    Irregular sample jig1Water drop jig1
    Long sample jig1Electroplate diamond grinding wheel (made in China)1
    Instruction1Power Cord1
    Warranty Card1Certificate, packing list1EACH

    Precision Cutting Metallographic Sample Preparation Equipment Diamond Grinding WheelPrecision Cutting Metallographic Sample Preparation Equipment Diamond Grinding Wheel

    Special Accessories

    ItemQuantityItemQuantity
    Diamond grinding wheel(import)150 mm

    Packaging and Shipping

    Packaging: Standard export package, wooden case

    Delivery: 3-15 days upon receipt of payment,depending on order quantity

    Shipping: Can be shipped by sea, air or other means per request.


    Our Services:

    Warranty: One year

    After sales service and maintenance: Lifelong
