Non Destructive Testing Equipment Scan mode 0.75 - 300mm Ultrasonic
Thickness Gauge TG3100 for epoxies , glass Features 1. Capable of performing measurements on a wide range of material,
including metals, plastic, ceramics, composites, epoxies, glass and
other ultrasonic wave well-conductive materials. 2. Transducer models are available for special application,
including for coarse grain material and high temperature
applications. 3. Two-Point Calibration function. 4. Two work modes: Single point mode and Scan mode. 5. Coupling status indicator showing the coupling status. 6. Optional software to process the memory data on the PC. 7. Optional thermal mini-printer to print the measured data via
RS232 port. Specifications 1. Display:4.5 digits LCD with EL backlight. 2. Measuring Range:0.75～300mm (in Steel). 3. Sound Velocity Range: 1000~9999 m/s. 4. Resolution: 0.1/0.01mm 5. Accuracy: ±(0.5%Thickness+0.04)mm, depends on materials and
conditions 6. Units: Metric/Imperial unit selectable. 7. Four measurements readings per second for single point
measurement, and ten per second for Scan Mode. 8. Memory for up to 20 files (up to 99 values for each file) of
stored values. 9. Power Source:Two AA size, 1.5 Volt alkaline batteries. 100 hours

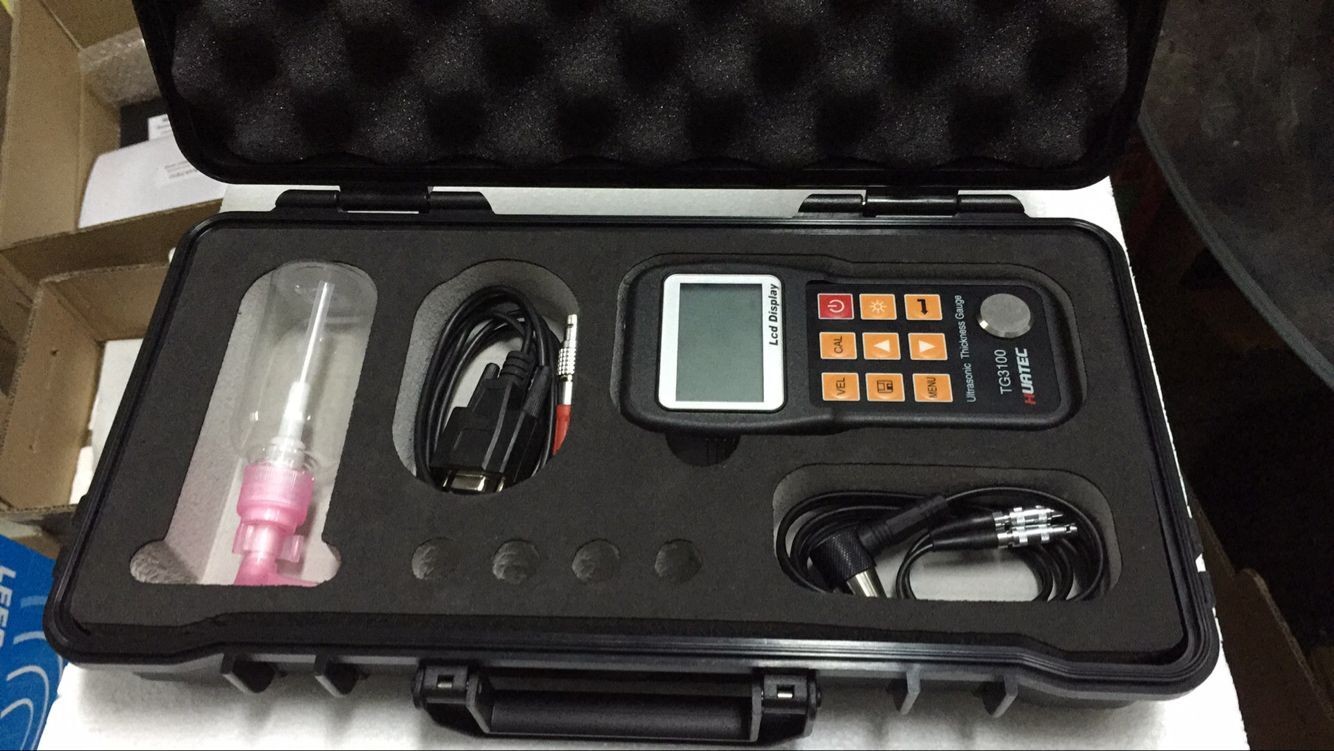

typical operating time (EL backlight off). 10. Communication:RS232 serial port. 11. Outline dimensions:150×74×32 mm. 12. Weight:245g Configuration | No | Item | Quantity | Note | Standard Configuration | 1 | Main body | 1 | | 2 | Transducer | 1 | Model: N05/90° | 3 | Couplant | 1 | | 4 | Instrument Case | 1 | | 5 | Operating Manual | 1 | | 6 | Alkaline battery | 2 | AA size | 7 | | | | 8 | | | | Optional Configuration | 9 | Transducer: N02 | | Appendix A | 10 | Transducer: N07 | | 11 | Transducer: HT5 | | 12 | Mini thermal printer | 1 | | 13 | Print cable | 1 | 14 | DataPro Software | 1 | 15 | Communication Cable | 1 |
Probe optional (Appendix A): Model | Freq. MHz | Diam. Mm | Measuring range | Lower limit | Description | N02 | 2 | 22 | 3.0mm-300.0mm (in steel) | 20 | For thick, highly attenuating, or highly scattering materials | N05 | 5 | 10 | 1.2mm-230.0mm (in steel) | ￠20mm×3.0mm | Normal measurement | N05/90° | 5 | 10 | 1.2mm-230.0mm (in steel) | ￠20mm×3.0mm | Normal measurement | N07 | 7 | 6 | 0.75mm-80.0mm (in steel) | ￠15mm×2.0mm | For thin pipe or small curvature pipe wall thickness measurement | HT5 | 5 | 14 | 3mm-200mm (in steel) | 30 | For high temperature measurement (up to 300℃) |
|
