Non Destructive Testing Equipment Ultrasonic Through Coating Thickness Gauge TG4100 in 5MHz Echo To Echo

TECHNICAL DATA

Display 128X64 Pixel LCD with backlight

Measuring range (in two function modes of Standard mode and through coating mode) Standard mode 3.0 mm-- 25.0 mm in steel depending on the probe,Special request can reach measuring range up to 500mm

Through coating mode 2.5 mm – 18.0 mm (Probe PT-08 and PT-12 )

Tolerance +/-0.05 mm in steel

Display resolution 0.01 mm( Less than 100.0 mm );0.1mm( over 100 mm )

Built-in standard block 4.00 mm

Memory 500 datas in 5 groups, memory does not lose after powering off

Velocity range 1000-9999 m/s

Power 2 pcs 1.2 V AAA batteries

Outside dimension 149X73X32 mm

Net Weight 160 g

FEATURES

- Automatic self-calibration

- Couplant indicator

- Automatic power off in 5 minutes and manual power off function

- High-low limit alarm

- LCD brightness adjustable

- Through coating capability

- Low battery indicator

- Two points calibration

- Metric/imperial optional

- Dataview for PC communication

STANDARD DELIVERY

Ultrasonic Through Coating Thickness Gauge TG4100 main unit with through coating mode

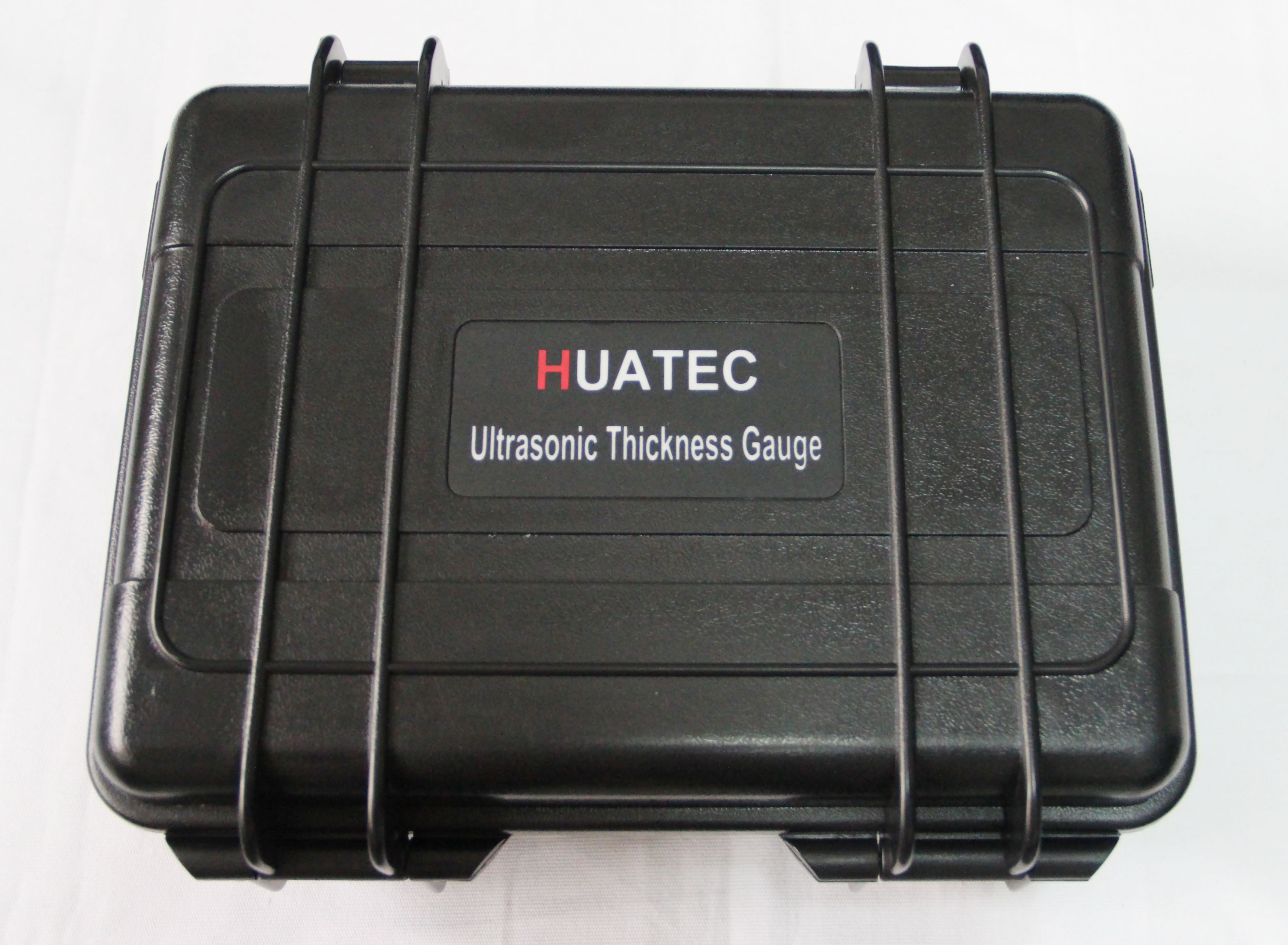

Hard carrying case

Couplant bottle

Standard 8 mm, 5 MHzprobe PT-08 with cable (through coating mode)

Dataview CD and communication cable

OPTIONAL ACCESSORIES

4 stepssteel test block

7 stepsmetrics steel test block

5 MHz, 4 mm contact probe

10 MHz, 4 mm, contact probe

5 MHz high temp. probe

Probe cables

Water proof housing

PROBE OPTIONAL For Digital Ultrasonic Thickness Gauge TG4100

Probe model Frequency Contact area Testing Range (steel) Contact Temp.

Cast iron probe ZT-12 2MHz 16.2mm 4.0-300.0mm --10--60℃

Standard probe PT-12 5MHz 12mm 1.0-200.0mm --10--60℃

Standard probe PT-08 5MHz 10mm 0.8-100.0mm --10--60℃

Small probe PT-06 7.5MHz 7.6mm 0.8-30.0mm --10--60℃

Small probe PT-04 10MHz 5mm 0.8-20.0mm --10--60℃

High temp probe GT-12 5MHz 14mm 4.0-80.0mm up to 300℃
