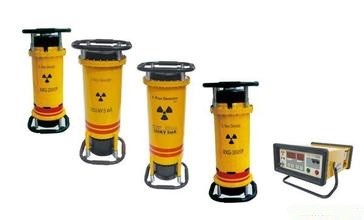

Directional radiation portable X-ray flaw detector
(Glass x-ray tube)
XXQ series are suitable for the material directional of thin iron
plate, aluminum, rubber and so on, may get very good picture
quality and clarity.
Feature:
●Checking the software and hardware itself after start the machine
●Excellent anti-jamming performance, which can adapt for field
operation without power supply, because of the motor supports
●Can adjust exposure parameters with keys ( easy operation.)
●Has the function of Delay time opening HV. Convenient for operator
keep away from dangerous field
●Can adjust high voltage slowly for protecting X-ray generator
●Automatically controlling according to 1:1 working and rest
operating way, the longest continuous exposure period is 5 minutes.
●Including complete protecting system: over KV, over KV, low mA,
over mA, over temperature and optical-sound alarming
●Convenient for repairing and maintenance
●Much more Substance for structure designing, much more convenient
for local operation
●Time can be changed for±0.3 according to the power supply net to
make the exposure more precise
Specification:
| Output voltage (Kv) | Input (KW) | Focus spot (mm) | Beam angle | Max penetration (mm) | Weight (KG) | Dimensions (mm) |
Generator | Controller | Generator | Controller |
XXQ-1005 | 50-100 | 1.2 | 0.8X0.8 | 40° | 7 | 8.5 | 11 | Ф135x555 | 350x290x160 |
XXQ-1605 | 60-160 | 1.5 | 0.8X0.8 | 40° | 18 | 17 | 11 | 225x225x600 | 350x290x160 |
XXQ-2005 | 100-200 | 2.0 | 1.5X1.5 | 40°+5° | 29 | 22.5 | 11 | 280x280x650 | 350x290x160 |
XXQ-2505 | 150-250 | 2.5 | 2.0X2.0 | 40°+5° | 39 | 33.5 | 11 | 320x320x740 | 350x290x160 |
XXQ-3005 | 170-300 | 3.0 | 3.5X3.5 | 40°+5° | 50 | 42 | 11 | 335x335x835 | 350x290x160 |
XXQ-3205 | 180-320 | 3.2 | 4.0X4.0 | 40°+5° | 55 | 42 | 11 | 335x335x835 | 350x290x160 |
XXQ-3505 | 200-350 | 3.2 | 4.0X4.0 | 40°+5° | 60 | 42 | 11 | 335x335x835 | 350x290x160 |
Standard Delivery
Directional glass X-ray tube | 1 Pcs |
|
Generator | 1 Set | |
High voltage joins cable | 1 Pcs | 25 Meters |
Controller | 1 Set | |
Power cable | 1 Pcs | 10 Meters |
Grounding cable | 1 Pcs | 5 Meters |
Accessories | 1 Set | |
(Including: alarm lamp, 1 Pcs; lead letter, 1 box; Film dark
cassettes 5 pcs; intensifying screen 5 pcs; Wire penetrameter (IQI)
1 set; fuse1 pc) |
Panoramicradiation portableX-rayflaw detector
(Glass x-raytube)
XXH series are suitable for the welding line detection of little
pipe.
Installing carrying wheel or pipeline creeping device, convenient
to set up in pipeline (controller also may enter pipeline with
generator together), once exposure complete one week welding line
detection.
Feature:
●Checking the software and hardware itself after start the machine
●Excellent anti-jamming performance, which can adapt for field
operation without power supply, because of the motor supports
●Can adjust exposure parameters with keys ( easy operation.)
●Has the function of Delay time opening HV. Convenient for operator
keep away from dangerous field
●Can adjust high voltage slowly for protecting X-ray generator
●Automatically controlling according to 1:1 working and rest
operating way, the longest continuous exposure period is 5 minutes.
●Including complete protecting system: over KV, over KV, low mA,
over mA, over temperature and optical-sound alarming
●Convenient for repairing and maintenance
●Much more Substance for structure designing, much more convenient
for local operation
●Time can be changed for±0.3 according to the power supply net to
make the exposure more precise
Specification:
| Output voltage (Kv) | Input (KW) | Focus spot (mm) | Beam angle | Max penetration (mm) | Weight (KG) | Dimensions (mm) |
Level target | Cone target | Level target | Cone target | Generator | Controller | Generator | Controller |
XXH-1005 | 50-100 | 1.2 | 1.0x3.5 | 25°+5° |
| 8 |
| 8.5 | 9.4 | Ф135x555 | 305x338x140 |
XXH-1605 | 60-160 | 1.5 | 1.0x3.5 | 25°+5° |
| 11 |
| 17 | 11 | 225x225x600 | 350x290x160 |
XXH-2005 | 100-200 | 2.0 | 1.0x3.5 | 25°+5° | 30°+5° | 27 | 24 | 22.5 | 11 | 280x280x650 | 350x290x160 |
XXH-2505 | 150-250 | 2.5 | 1.0x2.4 | 25°+5° | 30°+5° | 37 | 34 | 33.5 | 11 | 320x320x740 | 350x290x160 |
XXH-3005 | 170-300 | 3.0 | 1.0x3.5 | 25°+5° | 30°+5° | 47 | 40 | 42 | 11 | 335x335x835 | 350x290x160 |
XXH-3205 | 180-320 | 3.2 | 1.0X4.0 | 25°+5° | 30°+5° | 50 | 45 | 42 | 11 | 335x335x835 | 350x290x160 |
XXH-3505 | 200-350 | 3.2 | 1.0X4.0 | 25°+5° | 30°+5° | 55 | 52 | 42 | 11 | 335x335x835 | 350x290x160 |
Standard Delivery
Directional glass X-ray tube | 1 Pcs |
|
Generator | 1 Set | |
High voltage joins cable | 1 Pcs | 25 Meters |
Controller | 1 Set | |
Power cable | 1 Pcs | 10 Meters |
Grounding cable | 1 Pcs | 5 Meters |
Accessories | 1 Set | |
(Including: alarm lamp, 1 Pcs; lead letter, 1 box; Film dark
cassettes 5 pcs; intensifying screen 5 pcs; Wire penetrameter (IQI)
1 set; fuse1 pc) |
Directional radiation portable X-ray flaw detector
(Ceramic X-ray Tube)
XXGseries areceramic X-ray tube, both can be directional model and
Panoramic, it is more durable than the glass tube: shake proof and
long working life.
Feature:
●Checking the software and hardware itself after start the machine
●Excellent anti-jamming performance, which can adapt for field
operation without power supply, because of the motor supports
●Can adjust exposure parameters with keys ( easy operation.)
●Has the function of Delay time opening HV. Convenient for operator
keep away from dangerous field
●Can adjust high voltage slowly for protecting X-ray generator
●Automatically controlling according to 1:1 working and rest
operating way, the longest continuous exposure period is 5 minutes.
●Including complete protecting system: over KV, over KV, low mA,
over mA, over temperature and optical-sound alarming
●Convenient for repairing and maintenance
●Much more Substance for structure designing, much more convenient
for local operation
●Time can be changed for±0.3 according to the power supply net to
make the exposure more precise
Specification
| Output voltage (Kv) | Input (KW) | Focus spot (mm) | Beam angle | Max penetration (mm) | Weight (KG) | Dimensions (mm) |
Generator | Controller | Generator | Controller |
XXG-1605 | 60-160 | 1.5 | 0.8X0.8 | 40°+5° | 18 | 17 | 11 | 225x225x600 | 350x290x160 |
XXG-2005 | 100-200 | 2.0 | 2.0X2.0 | 40°+5° | 29 | 22.5 | 11 | 280x280x650 | 350x290x160 |
XXG-2505 | 150-250 | 2.5 | 2.0X2.0 | 40°+5° | 38 | 33.5 | 11 | 320x320x745 | 350x290x160 |
XXG-3005 | 170-300 | 3.0 | 2.5X2.5 | 40°+5° | 50 | 42 | 11 | 335x335x835 | 350x290x160 |
Panoramic radiation portable X-ray flaw detector
(Ceramic X-ray Tube)
XXGseries areceramic X-ray tube, both can be directional model and
Panoramic, it is more durable than the glass tube: shake proof and
long working life.
Feature:
●Checking the software and hardware itself after start the machine
●Excellent anti-jamming performance, which can adapt for field
operation without power supply, because of the motor supports
●Can adjust exposure parameters with keys ( easy operation.)
●Has the function of Delay time opening HV. Convenient for operator
keep away from dangerous field
●Can adjust high voltage slowly for protecting X-ray generator
●Automatically controlling according to 1:1 working and rest
operating way, the longest continuous exposure period is 5 minutes.
●Including complete protecting system: over KV, over KV, low mA,
over mA, over temperature and optical-sound alarming
●Convenient for repairing and maintenance
●Much more Substance for structure designing, much more convenient
for local operation
●Time can be changed for±0.3 according to the power supply net to
make the exposure more precise
Specification
| Output voltage (Kv) | Input (KW) | Focus spot (mm) | Beam angle | Max penetration (mm) | |
