    CE ISO Approved X-Ray Flaw Detector Parts , Portable Ceramic X Ray Tube

    Ask Lasest Price
    Brand Name : HUATEC
    Model Number : XXG
    Certification : CE ISO
    Price : USD1000-USD2000
    Payment Terms : L/C, T/T, Western Union
    Supply Ability : 1000pcs per month
    Delivery Time : 3-5 working days
    • Product Details
    • Company Profile

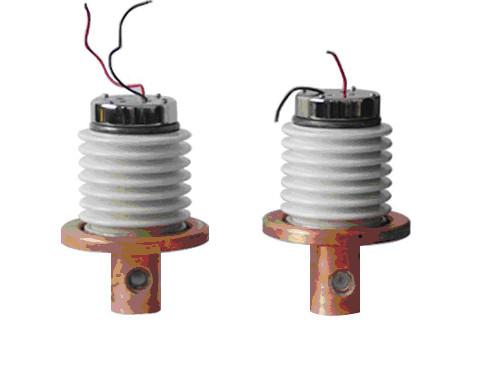

    CE ISO Approved X-Ray Flaw Detector Parts , Portable Ceramic X Ray Tube

    Accessory of X - Ray Flaw Detector Portable Ceramic X Ray Tube


    We manufacture a wide range of industrial x-ray tubes with excellent quality and competive prices, including glass x-ray tubes and ceramic x-ray tubes. Our x-ray tubes are available to various model of industrial portable NDT x-ray flaw detectors and x-ray pipeline crawlers.


    Features:

    1. Anode Grounded

    2. Tungsten Filament

    3. High Vacuum

    4. Beryllium Window

    5. Tungsten Target

    6. Air-forced Cooling

    7. Small Focal Size


    Sensitive X-Ray Flaw Detector , Portable Ceramic X Ray Tube

    No.

    Model

    Tube voltage(KVp)

    Tube current(mA)

    Focus point(mm)

    Filament voltage
    (V)

    Filament current(A)

    Radiant angle

    Model applied

    1

    X9

    160

    5

    1.5×1.5

    4~4.5

    4

    40°+5°

    XXG-1605

    2

    X9(B)

    160

    5

    1.0×2.0

    4~4.5

    4

    25°×360°

    XXGH-1605

    3

    X9(C)

    160

    5

    1.0×2.0

    4~4.5

    4

    30°×260°

    XXGHZ-1605

    4

    X2

    200

    5

    2.0×2.0

    5.8~6.2

    4

    40°+5°

    XXG-2005

    5

    X2(B)

    200

    5

    1.0×2.4

    5.8~6.2

    4

    25°×360°

    XXGH-2005

    6

    X2(C)

    200

    5

    1.0×2.5

    5.8~6.2

    4

    30°×360°

    XXGHZ-2005

    7

    X3

    250

    5

    2.0×2.0

    5.8~6.2

    4

    40°+5°

    XXG-2505

    8

    X3(B)

    250

    5

    1.0×2.4

    5.8~6.2

    4

    25°×360°

    XXGH-2505

    9

    X3(C)

    250

    5

    1.0×2.5

    5.8~6.2

    4

    30°×360°

    XXGHZ-2505

    10

    X5

    300

    5

    2.5×2.5

    5.8~6.2

    4

    40°+5°

    XXG-3005

    11

    X5(B)

    300

    5

    1.0×3.4

    5.8~6.2

    4

    25°×360°

    XXGH-3005

    12

    X5(C)

    300

    5

    1.0×3.5

    5.8~6.2

    4

    30°×360°

    XXGHZ-3005

    13

    X7

    350

    5

    3.0×3.0

    6~7

    4

    40°+5°

    XXG-3505

    14

    X7(B)

    350

    5

    1.5×3.4

    6~7

    4

    25°×360°

    XXGH-3505

    15

    X7(C)

    350

    5

    1.5×3.5

    6~7

    4

    30°×360°

    XXGHZ-3505


    Quality CE ISO Approved X-Ray Flaw Detector Parts , Portable Ceramic X Ray Tube for sale
