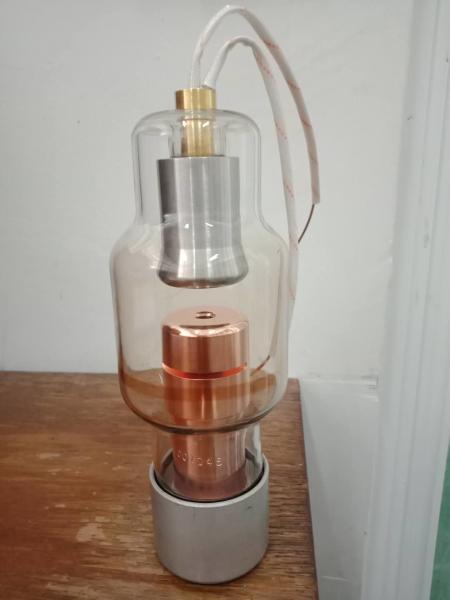

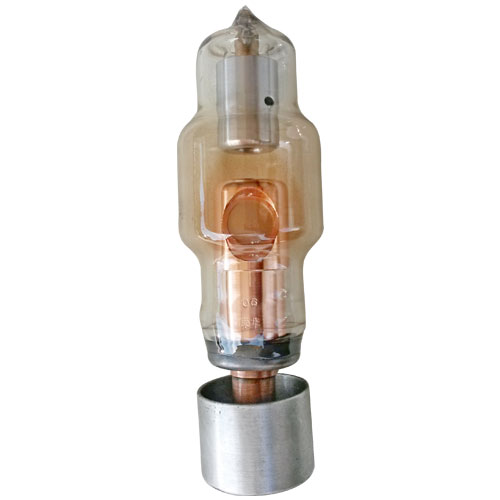

    X Ray Tube for Airport X Ray Security Inspection System Smiths Heimann HI-SCAN Ray Glass

    Ask Lasest Price
    Brand Name : HUATEC
    Model Number : H33B
    Certification : CE, ISO
    Payment Terms : T/T, Western Union, MoneyGram, L/C
    Supply Ability : 2000 per month
    Delivery Time : in stock
    • Product Details
    • Company Profile

    X Ray Tube for Airport X Ray Security Inspection System Smiths Heimann HI-SCAN Ray Glass

    X Ray Tube for Airport X Ray Security Inspection System Smiths Heimann HI-SCAN Ray Glass


    We manufacture a wide range of industrial x-ray tubes with excellent quality and competive prices, including glass x-ray tubes and ceramic x-ray tubes. Our x-ray tubes are available to various model of industrial portable NDT x-ray flaw detectors and x-ray pipeline crawlers.


    Features:

    1. Anode Grounded

    2. Tungsten Filament

    3. High Vacuum

    4. Beryllium Window

    5. Tungsten Target

    6. Air-forced Cooling

    7. Small Focal Size


    Specifications for the x ray glass tube for airport x ray safe examination inspection system

    Number

    Model

    Technical parameters

    Beam angle

    Size

    Tube voltage (kVp)

    Tube current

    (mA)

    Focus sport(mm)

    Filament voltage(V)

    Filament current(A)

    1

    H33A

    160

    2

    0.8×0.8

    5.3

    4.4

    40°+5°

    Glass: Φ68mm,Total length:190mm

    2

    H33B

    160

    4

    0.3×0.8

    4

    3.5±0.2

    110°×4°

    Glass:Φ68mm, Total length:190mm

    3

    H33C

    160

    4

    2.5×0.8

    3.5±0.2

    3.7±0.2

    110°×20°

    Glass:Φ68mm, Total length:190mm

    4

    H33D

    160

    2

    0.8×0.8

    3.5±0.2

    3.7±0.2

    80°×60°

    Glass:Φ68mm,Total length:190mm

    5

    H33E

    160

    4

    0.8×0.8

    3.5±0.2

    3.7±0.2

    60°

    Glass:Φ68mm,Total length:190mm

    6

    H33F

    160

    5

    0.8×0.8

    3.5±0.2

    3.7±0.2

    40°×60°

    Double angle

    Glass:Φ68mm,Total length:190mm


    Note: Radiator type optional:Φ52mm×39mm,Φ65mm×39mm


    The x ray glass tube can be used with any international brand machines.

    We offer customized x ray tube as customer request.
