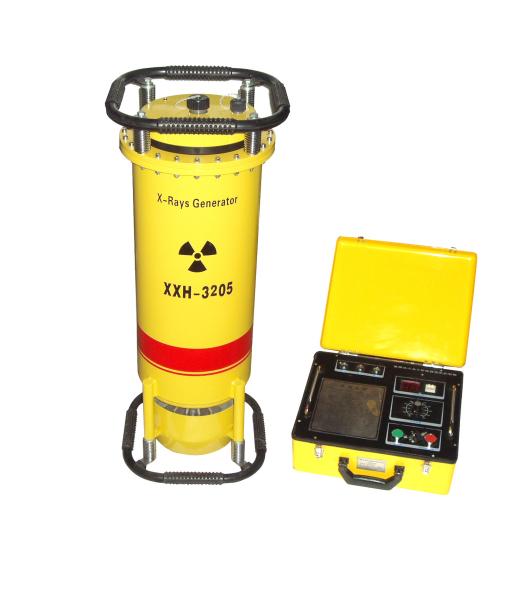

    XXH-3205 Non destructive weld testing equipment with glass x - ray tube


    Panoramic radiation portable X-ray flaw detector XXH-3205 with glass x-ray tube


    XXH series are suitable for the welding line detection of little pipe. Installing carrying wheel or pipeline creeping device, convenient to set up in pipeline (controller also may enter pipeline with generator together), once exposure complete one week welding line detection.


    Feature:
    ● Checking the software and hardware itself after start the machine
    ● Excellent anti-jamming performance, which can adapt for field operation without power supply, because of the motor supports
    ● Can adjust exposure parameters with keys ( easy operation.)
    ● Has the function of Delay time opening HV. Convenient for operator keep away from dangerous field
    ● Can adjust high voltage slowly for protecting X-ray generator
    ● Automatically controlling according to 1:1 working and rest operating way, the longest continuous exposure period is 5 minutes.
    ● Including complete protecting system: over KV, low mA, over mA, over temperature and optical-sound alarming
    ● Convenient for repairing and maintenance
    ● Much more Substance for structure designing, much more convenient for local operation
    ● Time can be changed for±0.3 according to the power supply net to make the exposure more precise


    Specification:

    Output voltage
    (Kv)

    Input
    (KW)

    Focus spot
    (mm)

    Beam angle

    Max penetration
    (mm)

    Weight (KG)

    Dimensions (mm)

    Level target

    Cone target

    Level target

    Cone target

    Generator

    Controller

    Generator

    Controller

    XXH-3205

    180-320

    3.2

    1.0x4.0

    25°+5°

    30°+5°

    50

    48

    42

    11

    335x335x835

    350x290x160

    XXH-3205 Non destructive weld testing equipment with glass x - ray tube

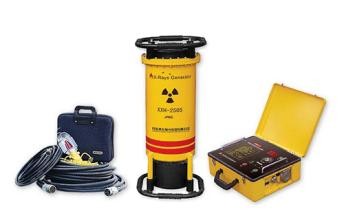

    Standard Delivery

    Directional glass X-ray tube

    1 Pcs

    Generator

    1 Set



    High voltage joins cable

    1 Pcs

    25 Meters

    Controller

    1 Set



    Power cable

    1 Pcs

    10 Meters

    Grounding cable

    1 Pcs

    5 Meters

    Accessories

    1 Set



    (Including: alarm lamp,1 Pcs; lead letter, 1 box; Film dark cassettes 5 pcs; intensifying screen 5 pcs; Wire penetrameter (IQI) 1 set; fuse1 pc)
