    Radiographic Weld Testing Equipment max penetration 50mm 250Kv / ndt machine

    Ask Lasest Price
    Brand Name : HUATEC
    Model Number : XXQ-3005
    Delivery Time : 7 working days
    Payment Terms : TT /LC, Western Union
    • Product Details
    • Company Profile

    Radiographic Weld Testing Equipment max penetration 50mm 250Kv / ndt machine

    Directional radiation portable X - ray flaw detector with glass x - ray tube max penetration 50mm 250Kv

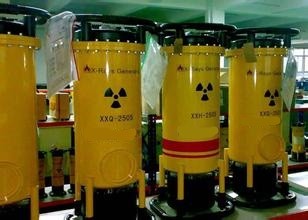

    Directional radiation portable X-ray flaw detector XXQ-3005
    (Glass x-ray tube)

    XXQ series are suitable for the material directional of thin iron plate, aluminum, rubber and so on, may get very good picture quality and clarity.

    Radiographic Weld Testing Equipment max penetration 50mm 250Kv / ndt machine

    Feature:
    ● Checking the software and hardware itself after start the machine

    ● Excellent anti-jamming performance, which can adapt for field operation without power supply, because of the motor supports

    ● Can adjust exposure parameters with keys ( easy operation.)

    ● Has the function of Delay time opening HV. Convenient for operator keep away from dangerous field

    ● Can adjust high voltage slowly for protecting X-ray generator

    ● Automatically controlling according to 1:1 working and rest operating way, the longest continuous exposure period is 5 minutes.

    ● Including complete protecting system: over KV, over KV, low mA, over mA, over temperature and optical-sound alarming

    ● Convenient for repairing and maintenance

    ● Much more Substance for structure designing, much more convenient for local operation

    ● Time can be changed for±0.3 according to the power supply net to make the exposure more precise


    Specification:


    Output voltage

    (Kv)

    Input

    (KW)

    Focus spot

    (mm)

    Beam angle

    Max penetration

    (mm)

    Weight (KG)

    Dimensions (mm)

    Generator

    Controller

    Generator

    Controller

    XXQ-3005

    170-300

    3.0

    3.5X3.5

    40°+5°

    50

    42

    18

    335x335x835

    350x290x160


    Standard Delivery

    Directional glass X-ray tube

    1 Pcs


    Generator

    1 Set



    High voltage joins cable

    1 Pcs

    25 Meters

    Controller

    1 Set



    Power cable

    1 Pcs

    10 Meters

    Grounding cable

    1 Pcs

    5 Meters

    Accessories

    1 Set



    (Including: alarm lamp, 1 Pcs; lead letter, 1 box; Film dark cassettes 5 pcs; intensifying screen 5 pcs; Wire penetrameter (IQI) 1 set; fuse1 pc)
