128 × 32 OLED Display Portable Hardness Testeing Machines With Mini
USB Communication Port
Introduction

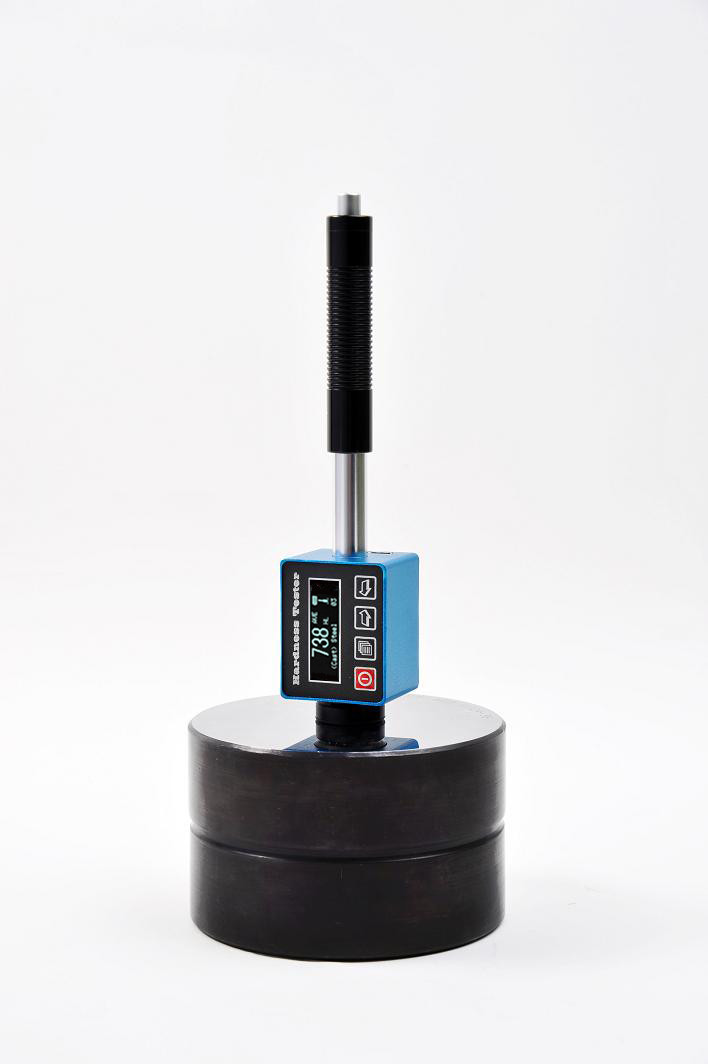

Model RHL-110D portable hardness tester can directly measure
different types of hardness value including (HRC, HRB, HRA), Leeb
(HL), Brinell (HB), Vickers (HV),and Shaw (HS). In accord with
international standards it's also can meet the "Leeb hardness
tester technical conditions ZBN7l 010-90" and the "metal in the
hardness test method GB / T 17394-1998" Leeb hardness standard JB/
T9378-2001 standards which are issued by the Ministry of Machinery
Industry and National Quality and Technical Supervision.
With low-power design and high-performance Li batteries which can
achieve ultra-long standby time work it has more compact and
flexible design increases user flexibility.
Features
All English menu display is easy to manipulate. OLED display for
better use in any environments.
With Mini USB communication port.
Large capacity memory can store 48~350 groups (impact average
times32~1) of information including single measured value, mean
value, testing date, impact direction, impact times, material and
hardness scale etc.
Conversion to tensile strength (U.T.S).
For all metallic materials.
Provide software calibration function.
High-performance Li battery with charging circuit providing
extra-long working time and standby time. Battery sign, display the
current remaining capacity.
PC Software can be equipped to meet the higher demands in quality
assurance, activities and management.
Technical Specification
Measuring range: 170~960 HLD
Measuring direction: 360°
Hardness Scale: HL, HRC, HRB, HRA, HV, HB, HS
Display: dot matrix LCD 128×32 dots
Data storage: 350 groups maxim, relative to impact times 32~1
Charging power supply: 5VDC,220VAC
Charging time: 1.5~2h
Battery: 3.7V,Li(80mAh)
Using temperature: 0 ~ 40℃
Storage temperature: -25 ~ 70℃
Continuous working period: 12h
Communication port: Mini USB
Outline dimensions: 146 × 30 × 25mm
Wight: 110g
Comparison table
Model | RHL-110D |
Hardness scale | HL, HRC, HRB, HRA, HV, HB, HS |
Measuring range | HLD(170 ~ 960), HRA(59 ~ 85), HRB(13 ~ 100), HRC(20 ~ 68), HB(19 ~ 651), HV(80 ~ 967), HS(30 ~ 100) |
Clock | Real-time data and time |
Auto off | 3~5 Minutes without any operation |
Data Interface | USB |
Power | Rechargeable Li Battery, 3.7V |
Memory | 48~350 group (Impact times: 32~1) |
Display | 128 × 32 OLED |
Continuous Working time | About 12h |
Charging time | 1.5 ~ 2 hours |
Overall dimensions | 146 × 30 × 25 mm |
Weight | 110g |
Configuration
| NO. | Item | Quantity |
Standard Configuration | 1 | Main uni. | 1 |
2 | Small support ring | 1 |
3 | Cleaning brush (I) | 1 |
4 | High value test block | 1 |
5 | Charger | 1 |
6 | Communication cable | 1 |
7 | Software | 1 |
Optional Configuration | 8 | Other type of support rings | |
9 | High, medium, and low HLD value test block | |
