    Radiography LED Film Viewer Adjustable Brightness 10000cd / m2 with view 230 × 65mm

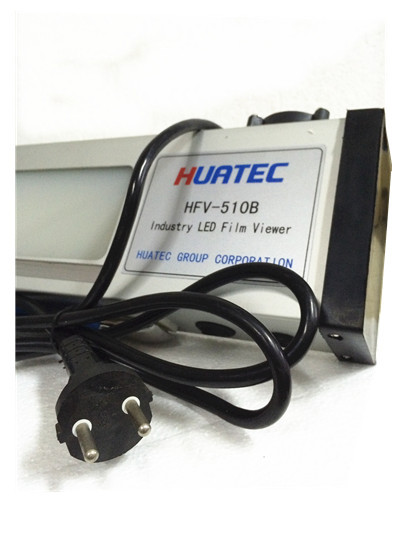

    Radiography Film Viewer HFV-510B LED film illuminator in Adjustable Brightness 10000cd/m2 with the view 230×65mm


    General Introduction

    HFV-510B LED film illuminator, designed to meet the requirement of mobile working site, with the combination of China nondestructive detection national standard JB/T4730-2005, JB/T4730-2005, DL/T821-2002, and GB3323-2005, is a high performance and cost-efficient pure white light source illuminator.


    Features

    Applies super high color temperature long-life lamp tube, the highest color temperature of HFV-510B LED film illuminator can reach 11,000K. It is a unique high color temperature film illuminator within China. With pure white photochromic, which well compansite the yellow film base, it can effectively eliminate the yellow vision error and enhance the vision fineness and definition, which is also used by film brand like Tianjin III, Kodak, Fujifilm.


    Main Technical Specification

    1. Luminance: 180,000 cd/m2

    2. view:230×65mm
    3. Lamp source: CCFL(cold cathode fluorescent lamp)

    4. Operation voltage: 220 VAC +/- 20% 50~60HZ

    5. Brightness:10000cd/m2(Adjustable)
    6. Power:220V 50Hz
    7. CCFL luminous tube using time≥30000h

    8. Start way:Foot switch

    9. Cooling: forced ventilation

    10. Exterior dimension: 470×120×70 mm

    Weight: 1.5 Kg

    Mini type, much better for outsite use


    HFV-510A D≥4.5

    HFV-510B D≥5.0 LED
