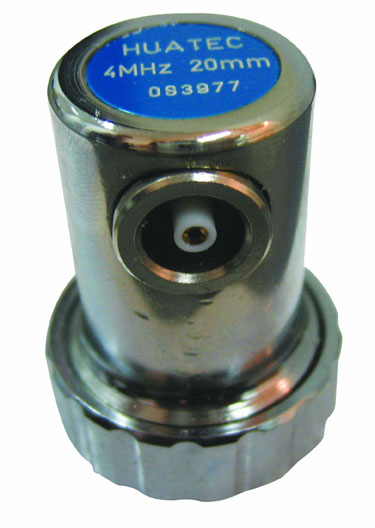

    Straight / Angle Beam UT Probe Transducer With 2MHz 4MHz 6MHz

    Ask Lasest Price
    Brand Name : HUATEC
    Certification : CE, ISO
    Model Number : HFD
    Delivery Time : 3-7 days
    Payment Terms : TT
    Supply Ability : 2000 per month
    Price : 40-60USD
    • Product Details
    • Company Profile

    Straight / Angle Beam UT Probe Transducer With 2MHz 4MHz 6MHz


    Ultrasonic Straight / Angle Beam Probe UT probe UT transducer UT With 2MHz 4MHz 6MHz


    Ultrasonic Transducer
    Probe type
    Designation
    Angle
    Transducer element size [mm]
    Frequency [MHz]
    Straight / Angle Beam UT Probe Transducer With 2MHz 4MHz 6MHz
    angle probe
    HFD 9x8-2M-35
    35°
    8x9
    2 MHz
    HFD 9x8-2M-45
    45°
    8x9
    2 MHz
    HFD 9x8-2M-60
    60°
    8x9
    2 MHz
    HFD 9x8-2M-70
    70°
    8x9
    2 MHz
    HFD 9x8-2M-80
    80°
    8x9
    2 MHz
    HFD 9x8-4M-35
    35°
    8x9
    4 MHz
    HFD 9x8-4M-45
    45°
    8x9
    4 MHz
    HFD 9x8-4M-60
    60°
    8x9
    4 MHz
    HFD 9x8-4M-70
    70°
    8x9
    4 MHz
    HFD 9x8-4M-80
    80°
    8x9
    4 MHz















    angle probe
    HFD 22x20-2M-35
    35°
    20x22
    2 MHz
    HFD 22x20-2M-45
    45°
    20x22
    2 MHz
    HFD 22x20-2M-60
    60°
    20x22
    2 MHz
    HFD 22x20-2M-70
    70°
    20x22
    2 MHz
    HFD 22x20-2M-80
    80°
    20x22
    2 MHz
    HFD 22x20-4M-35
    35°
    20x22
    4 MHz
    HFD 22x20-4M-45
    45°
    20x22
    4 MHz
    HFD 22x20-4M-60
    60°
    20x22
    4 MHz
    HFD 22x20-4M-70
    70°
    20x22
    4 MHz
    HFD 22x20-4M-80
    80°
    20x22
    4 MHz
    Probe type
    Designation
    Transducer element* diameter[mm]
    Frequency[MHz]
    Standard straight probe

    Straight / Angle Beam UT Probe Transducer With 2MHz 4MHz 6MHz

    HFD 10-2M
    Ø 10
    2 MHz
    HFD 10-4M
    Ø 10
    4 MHz
    HFD 10-6M
    Ø 10
    6 MHz
    HFD 20-2M
    Ø 20
    2 MHz
    HFD 20-4M
    Ø 20
    4 MHz
    HFD 20-6M
    Ø 20
    6 MHz
    Probe type
    Designation
    Transducer element* diameter[mm]
    Frequency[MHz]
    Dual straight probe
    Straight / Angle Beam UT Probe Transducer With 2MHz 4MHz 6MHz
    PQ 2/10-2M
    Ø 10
    2 MHz
    PQ 2/10-4M
    Ø 10
    4 MHz
    PQ 2/10-6M
    Ø 10
    6 MHz
    PQ 2/20-2M
    Ø 20
    2 MHz
    PQ 2/20-4M
    Ø 20
    4 MHz
    PQ 2/20-6M
    Ø 20
    6 MHz
    Probe type
    Designation
    Angle
    Transducer element* diameter[mm]
    Frequency[MHz]
    Straight / Angle Beam UT Probe Transducer With 2MHz 4MHz 6MHz

    Dual angle probe
    HFD 13x8-2M-60
    60°
    8x13
    2 MHz
    HFD 13x8-2M-70
    70°
    8x13
    2 MHz
    HFD 20x10-2M-60
    60°
    10x20
    2 MHz
    HFD 20x10-2M-70
    70°
    10x20
    2 MHz
    HFD 13x8-5M-60
    60°
    8x13
    5 MHz
    HFD 13x8-5M-70
    70°
    8x13
    5 MHz

    Note:

    1.Other special probes are available such as Angle beam probe with pour water, probe for variable angle, probe for locomotive piston, beam TR probe with pour water, probe for railcar axle, probe for demarcate echo, cleanout machine tansducer etc.

    2.We offer all kinds of probe with customer request.


    Testing Curve Report for a Transducers (optional by order)



    Straight / Angle Beam UT Probe Transducer With 2MHz 4MHz 6MHz
