    Magnetic Coating Thickness Gauge TG8825 for non - magnetic coating layers

    Ask Lasest Price
    Brand Name : HUATEC
    Model Number : TG8825
    Certification : CE
    Delivery Time : 3-7 working days
    Payment Terms : TT, L/C, Western Union
    • Product Details
    • Company Profile

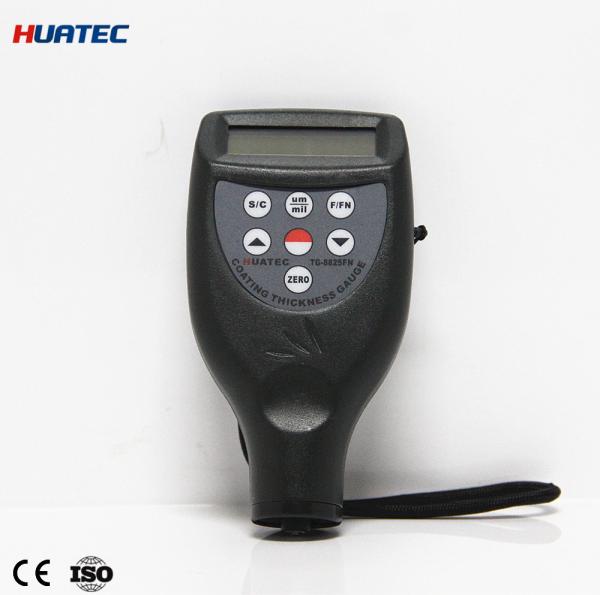

    Magnetic Coating Thickness Gauge TG8825 for non - magnetic coating layers

    Magnetic induction 1250um Coating Thickness Gauge TG8825 for non - magnetic coating layers
    Application:
    1. Coating thickness gauge TG-8825F can measure the thickness of non-magnetic coating layers (aluminum, chrome, copper, ename1, rubber, paint) on magnetic substrate (steel, iron, alloy and magnetic stainless steel)
    2. Coating thickness gauge TG-8825N can measure the thickness of non-conductive coating layers (ename1, rubber, paint, vanish, plastic anodic oxide layer) covered on non-ferrous substrate (aluminum, brass, zinc, tin and non-magnetic stainless steel)
    Description:
    Function: TG-8825F (ferrous substrate) TG-8825N (non ferrous substrate) TG-8825FN (2 in 1, F & NF type)
    Measuring principle: magnetic induction & eddy current
    Measurement range:0~1250um in built probe (integrated probe)
    Resolution:0.1 um (under 100um) 1um (over 100um)
    Accuracy: ±1~3%n or ±3um
    Probe type recognition: Manual (For TG-8825FN)
    Measurement mode: single
    Data output: RS232C interface (optional)
    Power supply: 4x1.5V AAA(UM-4)battery
    2 Shutdown models: manual / automatic
    Dimension: 131x65x28mm

    Weight:81g

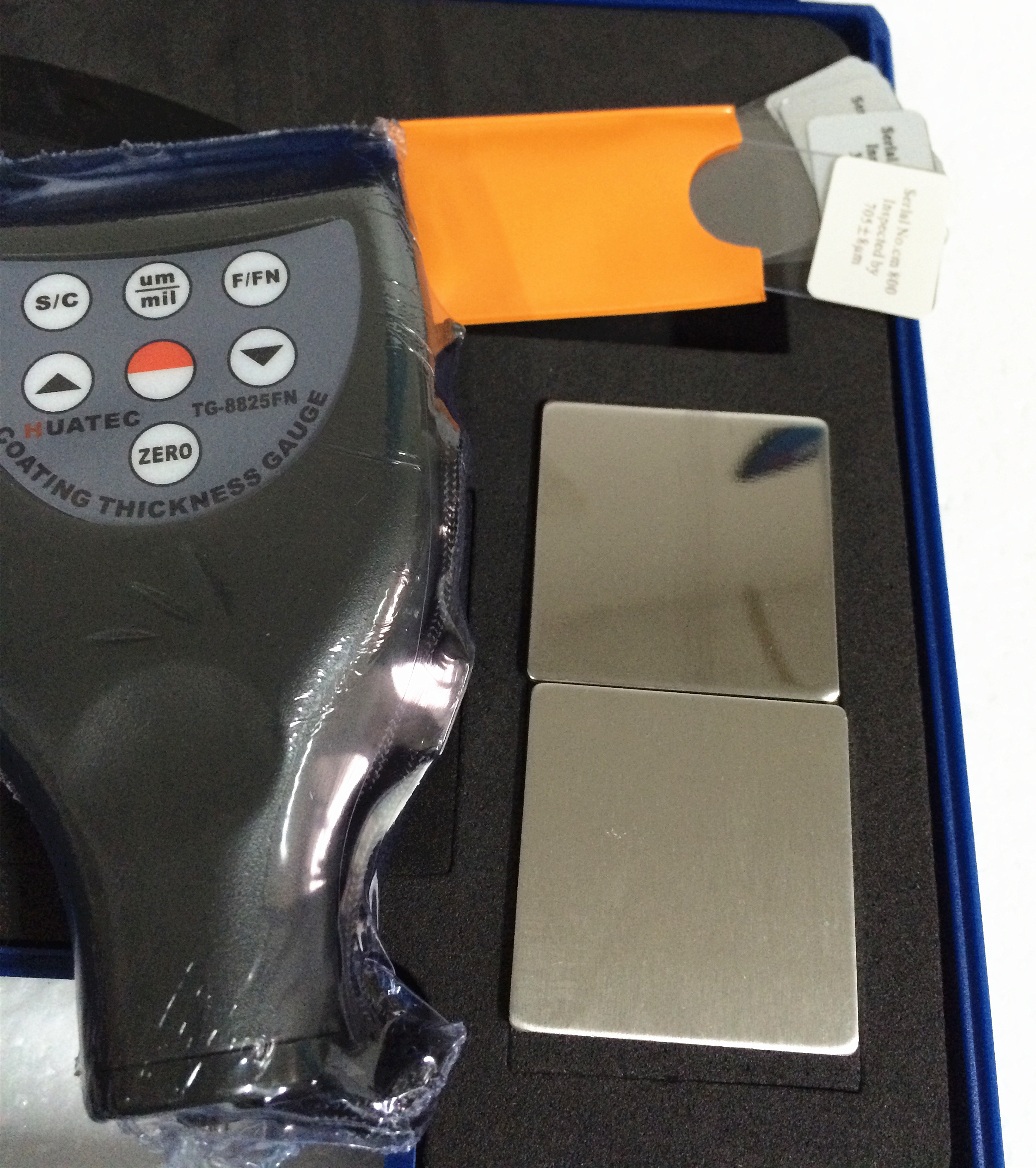

    Standard Delivery of Paint Thickness Gauge TG8825FN:
    Main unit(1250um) 1
    F type probe 1
    N type probe 1
    F calibration base set 1
    N calibration base set 1
    Calibration foil set 1set (4 foils)
    Carrying case 1
    Instruction manual 1

    Optional Accessories
    Cable and software for RS-232C
