    Auto Power Off Metal Hardness Tester / Leeb Hardness Tester TH130 For Heavy Work Piece

    Ask Lasest Price
    Brand Name : HUATEC
    Model Number : RHL-TH130
    Certification : CE ISO
    Payment Terms : Western Union, T/T, L/C
    Supply Ability : 500 pcs per month
    Delivery Time : 3 working dyas
    • Product Details
    • Company Profile

    Auto Power Off Metal Hardness Tester / Leeb Hardness Tester TH130 For Heavy Work Piece

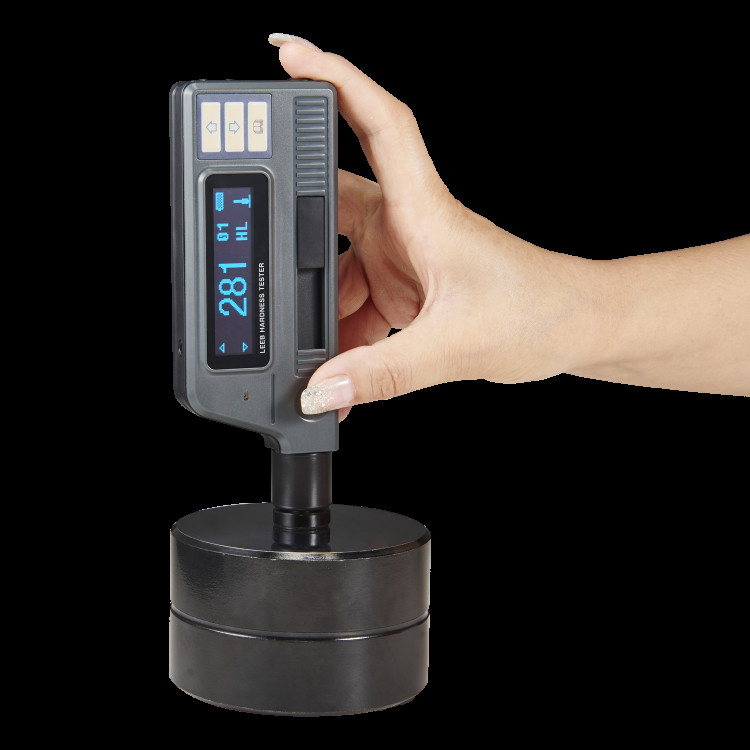

    Portable Hardness Tester Metal Hardness Tester Leeb Hardness Tester TH130

    Auto Power Off Metal Hardness Tester / Leeb Hardness Tester TH130 For Heavy Work Piece

    Advantages

    • Large screen(128×64 dot matrix LCD), showing all functions and parameters.
    • Test at any angle, even upside down.
    • Wide measuring range. It can measure the hardness of all metallic materials. Direct display of hardness scales HRB, HRC, HV, HB, HS, HL and three types of strength values immediately.
    • Seven impact devices are available for special application. Automatically identify the type of impact devices.
    • Large capacity memory could store 1000 groups (Relative to average times32~1 ) information including single measured value, mean value, testing data, impact direction, impact times, material and hardness scale etc.
    • Upper and lower limit can be preset. It will alarm automatically when the result value exceeding the limit.
    • Battery information indicates the rest capacity of the battery and the charge status.
    • User calibration function.
    • USB port with the PC humanity multi-functions data proceeding software.
    • Original imported high speed thermal printer support the immediate printing function. It can save data permanently.
    • NI-MH rechargeable battery as the power source. Charge circuit integrated inside the instrument. Continuous working period of no less than 150 hours (EL off and no printing).

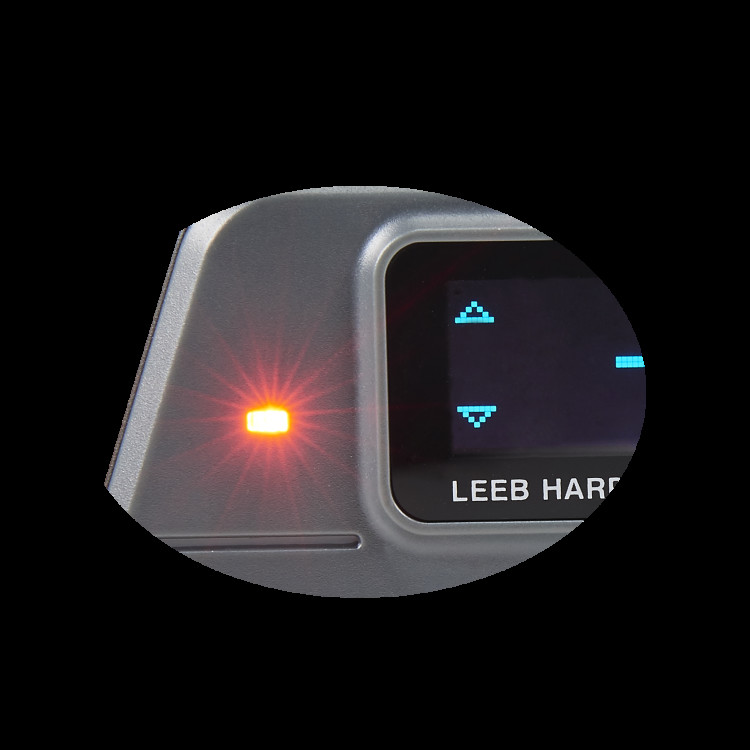

    • Auto power off to save energy.
    • Excellent after-sale service system for high quality products---two years’ guarantee and all life maintenance. Easy to buy and comfortable to use.

    Main Application

    • Die cavity of molds
    • Bearings and other parts
    • Failure analysis of pressure vessel, steam generator and other equipment
    • Heavy work piece
    • The installed machinery and permanently assembled parts
    • Testing surface of a small hollow space
    • Material identification in the warehouse of metallic materials
    • Rapid testing in large range and multi-measuring areas for large-scale work piece

    Technical Specifications

    • Measuring range:HLD(170~960)HLD
    • Measuring direction:360°
    • Hardness Scale:HL,HB,HRB,HRC,HRA,HV,HS
    • Display:dot matrix LCD,128×64 dots
    • Data memory: 500 groups max.(relative to impact times 32~1)
    • Printing paper: width is (57.5±0.5)mm, diameter is 30mm
    • Battery pack: 6V NI-MH
    • Battery charger: 9V/500mA
    • Continuous working period:about 150 hours(With backlight off, no printing)
    • Communication interface:USB1.1
    • Outline dimensions:212mm×80mm×32mm

    Configuration

    No.ItemQuantityRemarks
    Standard Configuration1Main Unit1
    2D type impact device1Without cable
    3Standard test block1
    4Cleaning brush (I)1
    5Small support ring1
    6Battery Charger19V 500mA
    7Manual1
    8DataPro software1
    9Communication cable1
    10Instrument case1
    11Calibration certificate1
    Optional accessories12Cleaning brush (II)1For use with G type impact device
    13Other type of impact devices and support ringsRefer to Table 3 and Table 4 in the appendix.

    Extra function can be added:

    OLED screen

    Extension cable for different impact device such as C, DL, DC,.

    Bluetooth function

    Printer
