    Digital Brinell Hardness Tester Rockwell Hardness Machine Vickers Hardness Machine

    Ask Lasest Price
    Brand Name : HUATEC
    Model Number : HBRVS-187.5
    Certification : ISO CE
    Payment Terms : T/T, Western Union
    Supply Ability : 500
    • Product Details
    • Company Profile

    Digital Brinell Hardness Tester Rockwell Hardness Machine Vickers Hardness Machine

    Digital Brinell Hardness Tester Rockwell Hardness Machine Vickers Hardness Machine

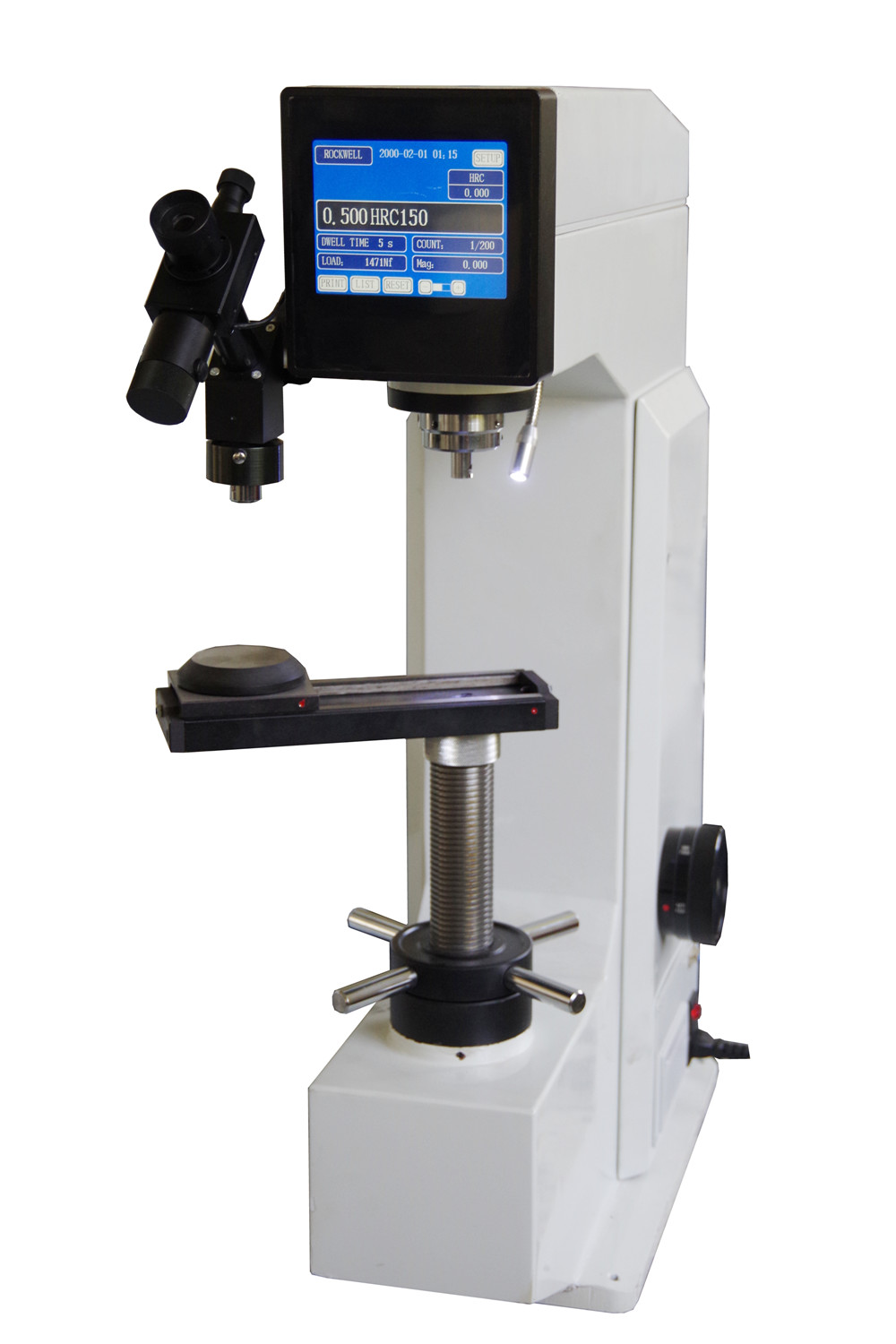

    Digital Brinell/Vickers/Rockwell Hardness Tester Model HBRVS-187.5

    Digital Brinell Hardness Tester Rockwell Hardness Machine Vickers Hardness Machine


    1.Brief introduction

    Digital Brinell/Vickers/Rockwell Hardness Tester applies to hardened steel,surface-hardened steel,hard alloy steel,cast iron,nonferrous metal,various tempering steel,hardened thin steel,and even including softer metal,surface-heat-treatment metal,chemical-heat-treatment metal etc,commonly used in industrial mining enterprises and scientific research institutions.

    • Three measuring modes:Brinell/Rockwell/Vickers
    • A multipurpose and multifunctional hardness with seven grade load can meet the requirements of various hardness measuring
    • Digital readout of Brinell/Rockwell/Vickers hardness on LCD
    • Automatic loading,load holding and unloading
    • Wide range of use and easy operation

    2.Technical parameter

    ModelHBRVS-187.5
    Preload98.07N(10kg)
    Load98.07N(10kg)~1839N(187.5kg)
    Brinell load31.25kgf(306.5N),62.5kgf(612.9N),187.5kgf(1839N)
    Brinell scaleHBW2.5/31.25,HBW2.5/62.5, HBW2.5/187.5,HBW5/62.5
    Diamond indenterDiamond Rockwell indenter,Diamond Vickers indenter
    Ball indenter sizeφ1.5875mm,φ2.5mm,φ5mm
    Rockwell load60kgf(588N) 100kgf(980.7N) 150kgf(1471N)
    Rockwell scaleHRA HRB HRC HRD HRE HRF HRG HRK HRH
    Vickers load30kgf(294.2N) 100kgf(980.7N)
    Vickers scaleHV30 HV100
    MinimumBrinell:0.004mm Vickers:0.002mm
    Magnification37.5x,75x
    Rockwell max test height260mm
    Brinell/Vickers max test height200mm
    Load holding time2~60s
    Rockwell hardness range20HR~100HR Accuracy:±0.1HR,repeatability: 0.5HR
    Vickers hardness range8HV~2900HV Accuracy(δ/%):±2,repeatability(Hcf/%):≤2.5
    Brinell hardness range8HBW~650HBW Accuracy(δ/%):±2.5,repeatability(Hcf/%):≤3.0
    Power supplyAC220+5%,50~60Hz
    Outline size(mm)540×230×820mm(720*500*1020)
    Total weight125kg

    3.Standard configuration

    Description & SpecificationQuantityDescription & SpecificationQuantity
    Diamond Rockwell indenter1φ1.5875,2.5,5mm carbide steel ball3
    Diamond Vickers indenter1Fuse 2A2
    Microscope1Light1
    Hardness block5Large,Mid,V-shaped bench3
    Power cord1Slip bench1
    Objective lens2Product manual1
