45° Angle Pencil Hardness Tester , 1mm / Second Scratch Hardness Tester

    Buy cheap 45° Angle Pencil Hardness Tester , 1mm / Second Scratch Hardness Tester from wholesalers

    Buy cheap 45° Angle Pencil Hardness Tester , 1mm / Second Scratch Hardness Tester from wholesalers
    • Buy cheap 45° Angle Pencil Hardness Tester , 1mm / Second Scratch Hardness Tester from wholesalers

    45° Angle Pencil Hardness Tester , 1mm / Second Scratch Hardness Tester

    Ask Lasest Price
    Brand Name : HUATEC
    Model Number : 1301
    Certification : ISO CE
    Payment Terms : T/T, Western Union
    Supply Ability : 500
    • Product Details
    • Company Profile

    45° Angle Pencil Hardness Tester , 1mm / Second Scratch Hardness Tester

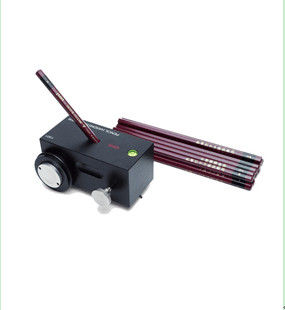

    Pencil Hardness Tester

    Product Introduction:

    Through leaving a superficial trace on the dry coating film with a certain pencil hardness, the surface will be variably damaged by the hardest pencil to evaluate pass/fail or hardness.

    45° Angle Pencil Hardness Tester with 1000/750/500g Pressure Of Pencil Tip45° Angle Pencil Hardness Tester with 1000/750/500g Pressure Of Pencil Tip45° Angle Pencil Hardness Tester with 1000/750/500g Pressure Of Pencil Tip45° Angle Pencil Hardness Tester with 1000/750/500g Pressure Of Pencil Tip

    Introduction:

    1301 Pencil Tester complies with the requirements of ASTM D3363 and ISO 15184 standard, through leaving a superficial trace on the dry coating film with a certain pencil hardness, the surface will be variably damaged by the hardest pencil to evaluate pass/fail or hardness. Recommend to apply on the smooth film surface.Use variety of different hardness pencils,the angle between pencil and the coated surface is 45°, scratch on the coated surface under a certain of force, the scratch resistance hardness of the coating is the pencil hardness which just scratched the coating.

    Technical Specification:

    ◆Pressure of pencil tip: 1000/750/500g
    ◆The angle between pencil and film surface is 45°
    ◆Three points are touched on the tested surface (roller, pencil tip)
    ◆Scratch Speed: 1 mm/sec

    Hardness Class:

    ◆Hardness Increase
    45° Angle Pencil Hardness Tester with 1000/750/500g Pressure Of Pencil Tip
    ◆Mitsubishi pencils are available upon request

    Order Information:

    1301/500 Pencil Hardness Tester (500g)
    1301/750 Pencil Hardness Tester (750g)
    1301/1000 Pencil Hardness Tester (1000g)
