    Adjustable Work Platform Coating Thickness Gauge Scratch Hardness Tester

    Ask Lasest Price
    Brand Name : HUATEC
    Model Number : 2801
    Certification : ISO CE
    Payment Terms : T/T, Western Union
    Supply Ability : 500
    • Product Details
    • Company Profile

    Adjustable Work Platform Coating Thickness Gauge Scratch Hardness Tester

    Scratch Tester

    Product Introduction:

    Scratch Tester is applied to the scratch resistance performance evaluation of single coating or complex coating system in insulated color coated sheet. It will be known the coating scratch resistance performance by evaluating whether the coating is scratched by tungsten carbide hemispherical stylus with a certain weight or the maximum load of the coating which can not be scratched.

    Big LCD Design Scratch Tester With The Power 220V/50Hz or 110V/60HzBig LCD Design Scratch Tester With The Power 220V/50Hz or 110V/60HzBig LCD Design Scratch Tester With The Power 220V/50Hz or 110V/60HzBig LCD Design Scratch Tester With The Power 220V/50Hz or 110V/60Hz

    Introduction:

    Scratch Tester is applied to the scratch resistance performance evaluation of single coating or complex coating system in insulated color coated sheet. It will be known the coating scratch resistance performance by evaluating whether the coating is scratched by tungsten carbide hemispherical stylus with a certain weight or the maximum load of the coating which can not be scratched.
    The Scratch Tester of is complied with the standards of ISO1518, BS3900.
    Enable to display the graph of scratch on the screen in real time and show the test result on the screen,it will directly display"OK "or "NG "


    Features:

    ◆Big LCD design,touch-screen operation
    ◆Adjustable work platform---More convenient
    ◆Display the test result on the conductive substrate
    ◆High Hardness Scriber---More durable
    ◆Special design for sample clamp---Equipped with ruler
    ◆Show the testing procedure with real time graph


    Technical Specification:

    Scratch Speed: 30-40 mm/sec
    Moving Distance: 65 mm
    Power: 220V/50Hz or 110V/60Hz

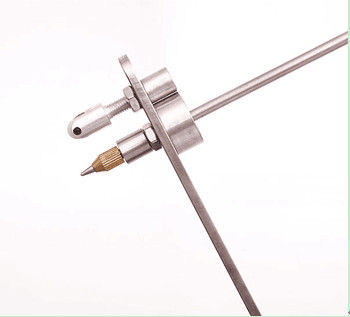

    Stylus: Tungsten carbide hemispherical stylus, diameter 1mm
    Metallic test panel size: 100×150×0.2mm(L×W×H)


    Order Information:

    2801--------Scratch Tester
    2801/P/001--Tungsten carbide hemispherical stylus, diameter: 1mm
