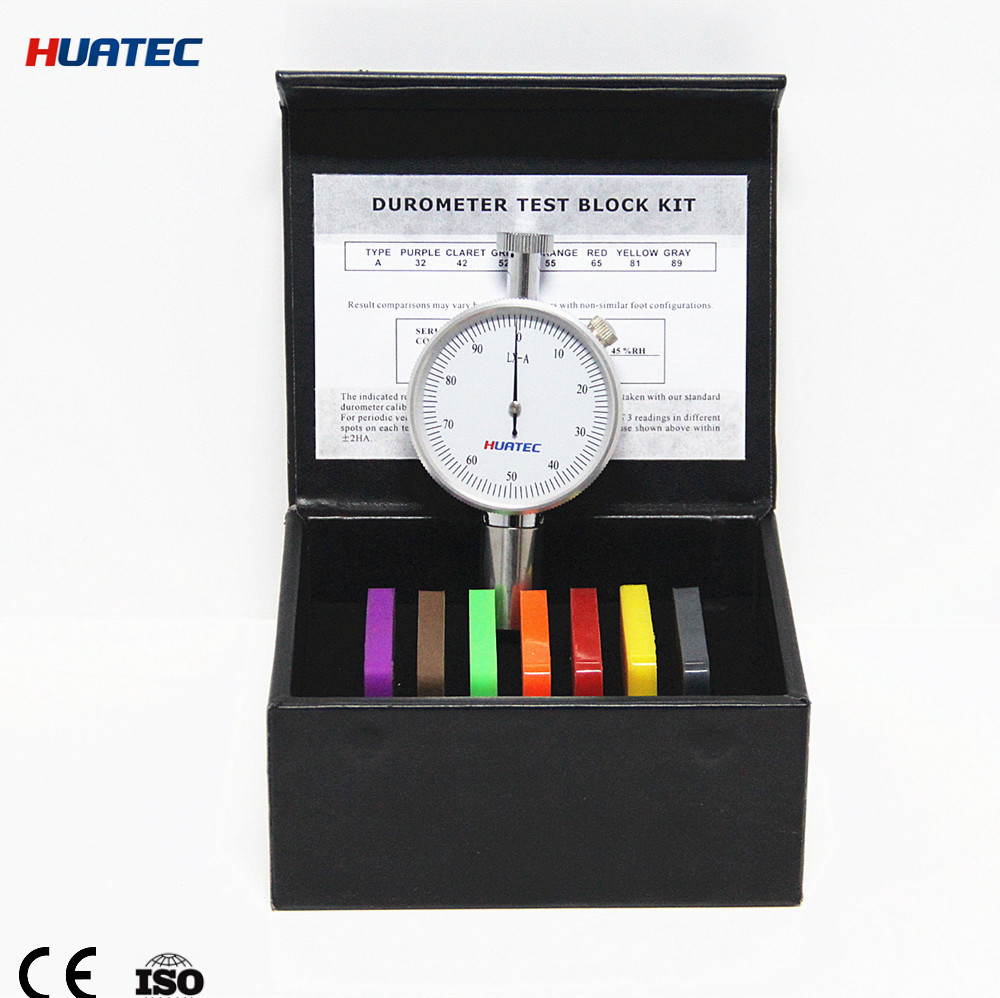

    High Precision Durometer Test Blocks Peak Hold Type With Handheld Design

    Ask Lasest Price
    Brand Name : HUATEC
    Model Number : LX-A
    Certification : ISO CE
    Payment Terms : T/T, Western Union
    Supply Ability : 500
    • Product Details
    • Company Profile

    High Precision Durometer Test Blocks Peak Hold Type With Handheld Design

    High precision, peak hold type durometer LX-A-2 twin needle, handheld design shore durometer


    Overview

    Shore durometer is used to test hardness of sulfureted rubber and plastics, such instrument has A-type/D-type/C-type.

    A-type and D-type apply to test the low and medium level hardness and high level hardness of materials.

    C-type applies to test the hardness of shoe-making porous materials made by vesicants within plastics when the compression rate is 50% and stress is beyond 0.049MPa.

    Main parameters

    Dial value:1-100 degree

    Indenter journey:0-2.5mm

    Stress at the end of indenter:0.55N-8.06N of A-type and C-type, 44.5N of D-type

    Function:

    LX shore A hardness is widely applied in the low hardness, all kinds of rubber, plastic, leather, wax and other multiple fat hardness test.

    Product reference:

    ISO868 and ISO7619 international standards, comply with GB/T531, JB6148 and JJG304 standards.

    Features:

    1. pointer type indicator, reading is convenient, accurate, high precision;

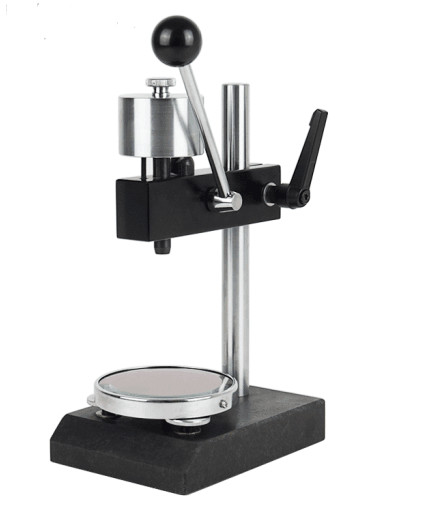

    2. handheld design, easy to carry, can be a hand-held measurement, can also be mounted on a supporting test rack test.

    Specifications and parameters:

    Dial value: 0~ 100HA;

    Needle pressing stroke: 2.5 mm;

    Recommended range: 10~ 90HA;

    The pressing head size:Φ0.79 mm;

    Weight: 0.5 kg.


    High Precision Durometer Test Blocks Peak Hold Type With Handheld DesignHigh Precision Durometer Test Blocks Peak Hold Type With Handheld Design
