    Astm D2240 Standard Hardness Testing Machine Portable 0 - 100hd Test Range

    Ask Lasest Price
    Brand Name : HUATEC
    Model Number : HS-D
    Certification : ISO CE
    Payment Terms : T/T, Western Union
    Supply Ability : 500
    • Product Details
    • Company Profile

    Astm D2240 Standard Hardness Testing Machine Portable 0 - 100hd Test Range

    Detailed Product Description
    Astm D2240 Standard Hardness Testing Machine Portable 0 - 100hd Test RangeAstm D2240 Standard Hardness Testing Machine Portable 0 - 100hd Test Range

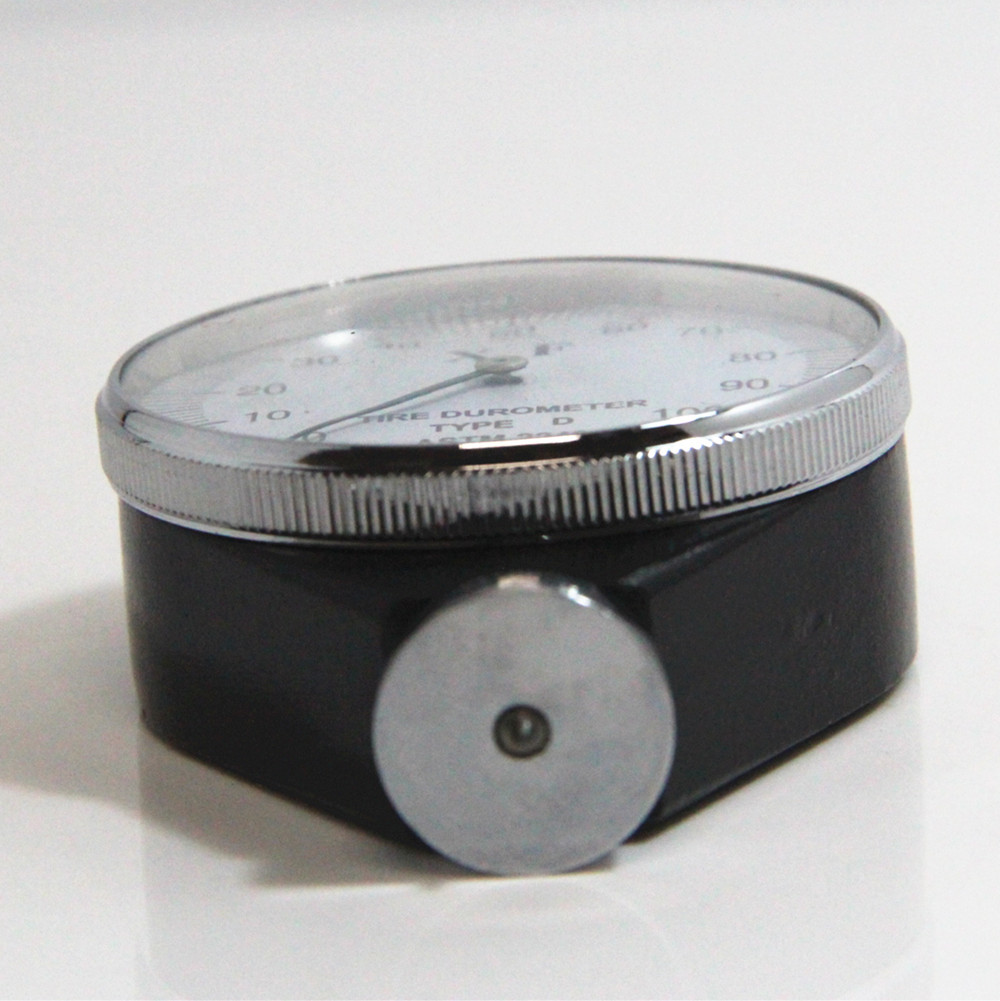

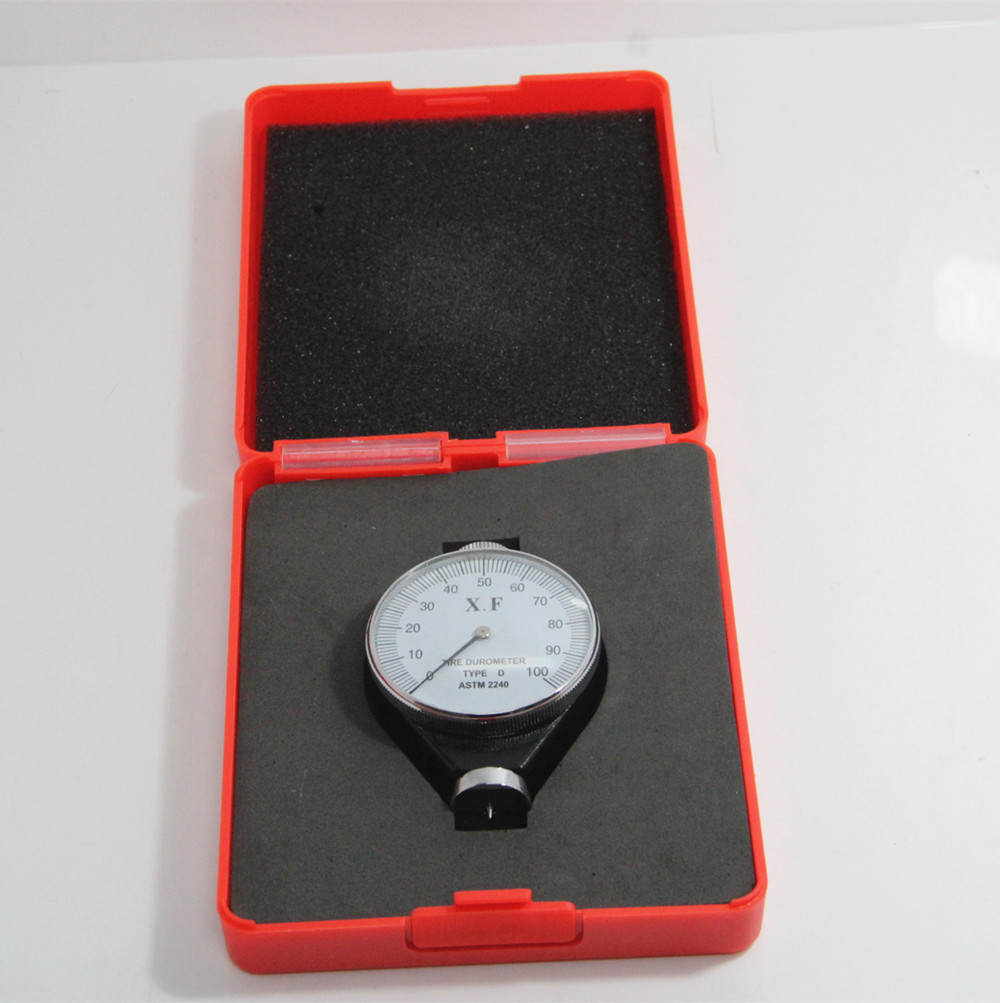

    Shore Durometer,Shore D hardness tester, Shore D durometer HS-D

    HS-D Durometer is an essential characteristic of various hard rubber, colophony, glass, print board, fiber and so on. It is feature portability, ease of operation, with facility, high resolution and it is available in GB/T 531 -1999, and ISO 7619, ASTM D2240.

    Specifications:

    Capacity: 0~100 HD

    Available test range: 20~90 HD

    Tip stroke: 0~2.5 mm

    Stroke: 2.5mm

    Tip dimension: SR 0.1mm

    Net weight: 0.2kg


    Shore durometer is used to test hardness of sulfureted rubber and plastics, such instrument has A-type/D-type/C-type.

    A-type and D-type apply to test the low and medium level hardness and high level hardness of materials.

    C-type applies to test the hardness of shoe-making porous materials made by vesicants within plastics when the compression rate is 50% and stress is beyond 0.049MPa.


    Operation instructions

    Put the sample on a solid plane, hold the durometer to make the indenter at least 12mm away from the sample edge, and stably put the legs of durometer on the sample. Thus the indenter straightly goes into the sample till the legs completely get to the sample. Check the reading in 1s.Repeat such test 5 times at different place which are at least 6mm away from the test point and find the average reading (the distance between porous materials is at least 15mm).
