    Small Medical Image Film Printer Non Destructive Testing Machine Low Noise

    Ask Lasest Price
    Brand Name : HUATEC
    Model Number : HDL-500DY
    Certification : ISO CE
    Payment Terms : T/T, Western Union
    Supply Ability : 500
    • Product Details
    • Company Profile

    Small Medical Image Film Printer Non Destructive Testing Machine Low Noise


    Small Medical Image Film Printer Non Destructive Testing Machine Low Noise


    HUATEC HDL-500DY medical image film printer

    (1) product profile

    The HDL series medical image printer is a kind of thermal imaging film printing used to copy the number of images sent through the network in DCOM format.

    The medical dry thermosensitive film is an imaging medium with the latest technical wood level. These imaging media can perfectly match CT (computed tomography), MRI (magnetic resonance imaging), digital X ray imaging (DR, CR), digital four intestines, milk removal, nuclear medicine, mobile X line imaging, dentistry and other imaging applications.

    The imaging medium can generate high quality grayscale film through medical dry imaging (direct thermal sensing) technology.

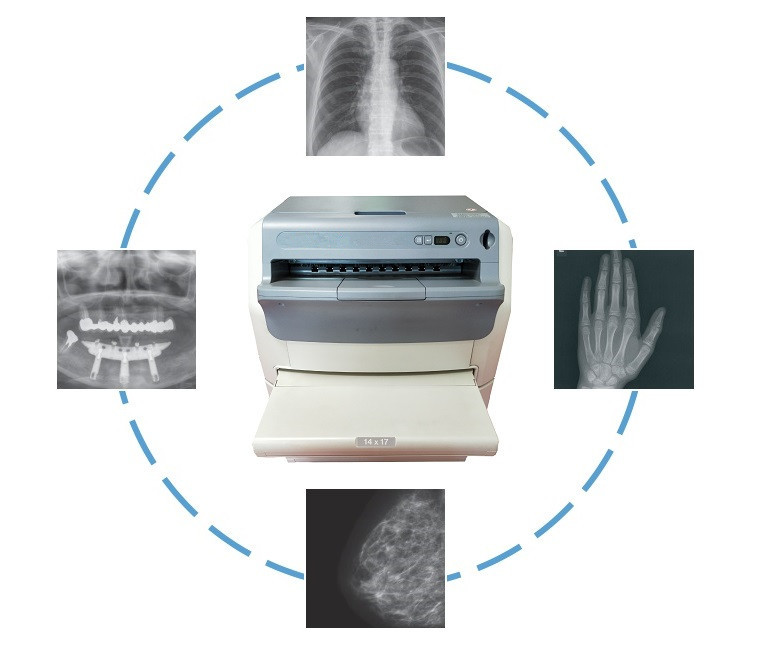

    (2)physical map

    Small Medical Image Film Printer Non Destructive Testing Machine Low Noise

    Small Medical Image Film Printer Non Destructive Testing Machine Low Noise


    Small Medical Image Film Printer Non Destructive Testing Machine Low Noise

    (3)technical parameters

    Printing methodDirect thermosensitive imaging
    Resolving power600dpi
    Gamma resolution12bit
    Printing speed14*17≧60pics 8*10≧80pics
    Shape size53*47*55cm
    Film inputEach of the 2 cassette boxes can hold 100 sheets of film and print two specifications simultaneously.
    Film output1 film boxes can hold 100 pieces of film
    Film Size8*10 10*12 11*14 14*17
    Film typeMedical dry heat sensitive film (blue and transparent)
    Network / image protocolTCP/IP DICOM3.0
    Image qualityAutomatic calibration with a built-in densimeter
    Image controlContrast, grayscale, polarity, rotation, saturation, scaling
    Control panelLarge background light LCD display, display online, alarm, failure and status
    Key switchPower and menu navigation buttons
    Power Supply110V-240V,50Hz/60Hz
    Weight45kg
    Fuselage baseSelection
