    HG6378T Vibration Meter Accurate Repeatable Measurements 140x73x35mm

    High quality accelerometer for accurate and repeatable measurements Vibration Tester HG6378T

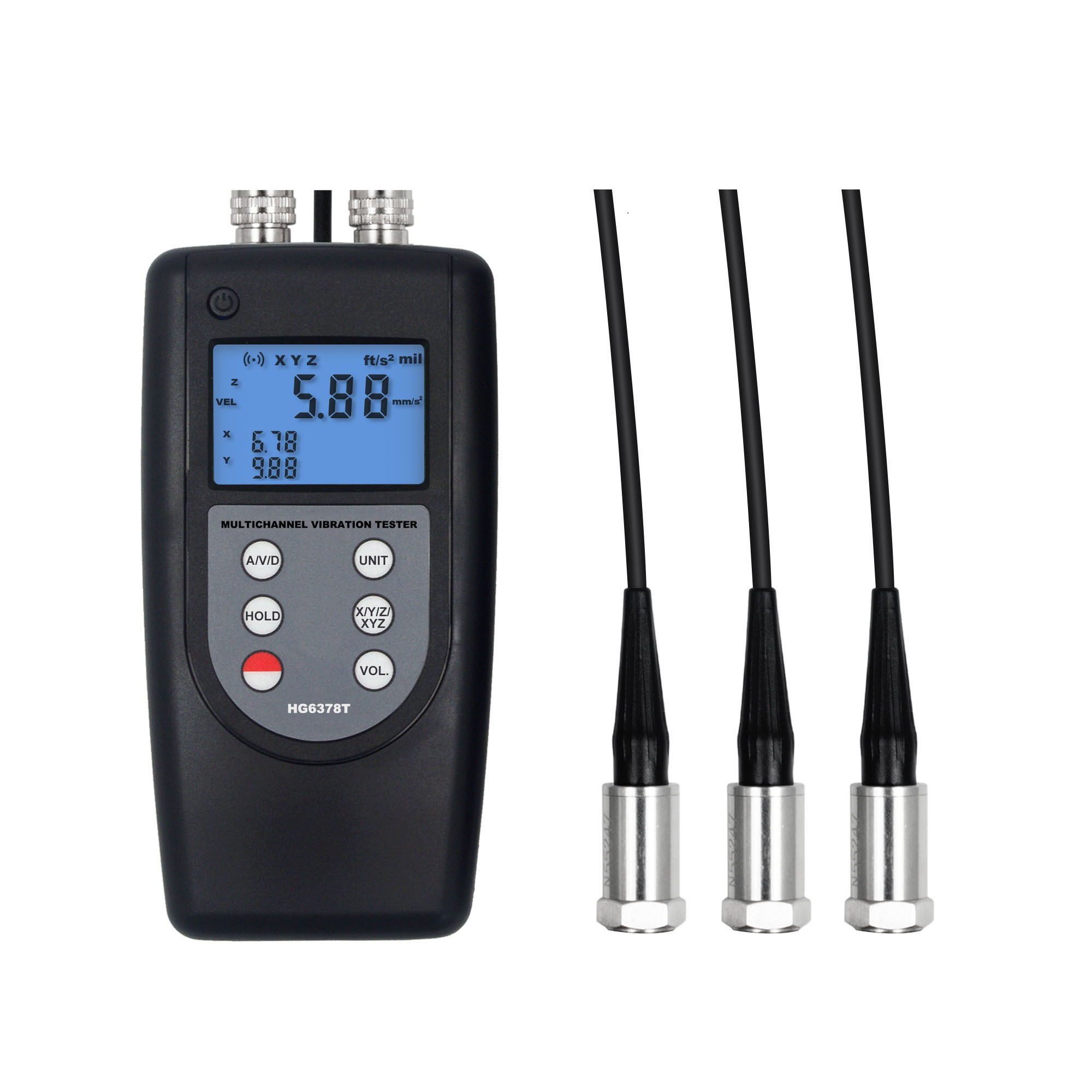

    Vibration Meter HG6378T

    HG6378T Vibration Meter Accurate Repeatable Measurements 140x73x35mm


    Application

    To check the imbalance and deflecting of moving machinery,

    Used for measuring periodic motion


    Features

    * In accordance with ISO 2954, used for periodic measurements, to detect out-of-balance, misalignment and other mechanical faults in rotating machines.

    * 3 same parameters in one display for 3 position measurement or 1 position measurement specified, showing 3 different parameters of velocity, acceleration and displacement in 1 display.

    * Bearing condition monitoring function.

    * Specially designed for easy on site vibration measurement of all rotating machinery for quality control,commissioning, and predictive maintenance purposes.
    * Individual high quality accelerometer for accurate and repeatable measurements.
    * Wide frequency range (10Hz~10kHz) in acceleration mode.
    * Optional headphones for use as electronic stethoscope.

    * Provide Bluetooth data output choice.
    * Use USB/RS-232 data output to connect with PC.


    Tecnical parameters

    Sensor3 Piezoelectric Transducers
    Measuring RangeAcceleration0.1~400m/s² 0.3~1312ft/s² 0.0~40g Equivalent Peak
    Velocity0.01~400mm/s 0.004~16.0inch/sTrue RMS
    Displacement0.001~4.0 mm 0.04~160.0 mil Equivalent Peak-peak
    Frequency RangeAcceleration10Hz~10kHz
    Velocity10Hz~1kHz
    Displacement10Hz~1kHz
    Accuracy5% of Reading+2 digits
    Operating ConditionsTemperature0~50ºC
    Humidity<90%RH
    Power Supply4x1.5V AAA(UM-4)Battery
    Dimensions140x73x35mm
    Weight

    415g(Not Including Batteries)


    Standard AccessoriesMain Unit
    Piezoelectric Transducers
    Powerful Rare Earth Magnet
    Probe(Cone)&Probe(Spherical)
    Carrying Case(B04)
    Manual Book
    Optional AccessoriesHeadset
    RS-232C Data Cable with Software
    Bluetooth Data Adapter with Software

    Vibration Standard

    ISO/IS2373 Motor Quality Standard According As Vibration Velocity
    Quality RankRev(rpm)H:high of shaft(mm)
    Maximum vibration velocity rms(mm/s)
    80<H<132132<H<225225<H<400
    Normal600~36001.82.84.5
    Good(R)600~18000.711.121.8
    1800~36001.121.82.8
    Excellent(S)600~18000.450.711.12
    1800~36000.711.121.8

    Standard accessories:

    Main unit

    Piezoelectric Transducer

    Powerful Rare Earth Magnet

    Probe(Cone)&Probe(Spherical)

    Carrying case

    Manual

    Test Report


    Optional accessories:

    Headset

    USB data cable with software

    Bluetooth date adapter with sofrware
