    ISO3906-1980 (E) ISO3905 ISO2814 Bluetooth Reflectance Meter HRM-206

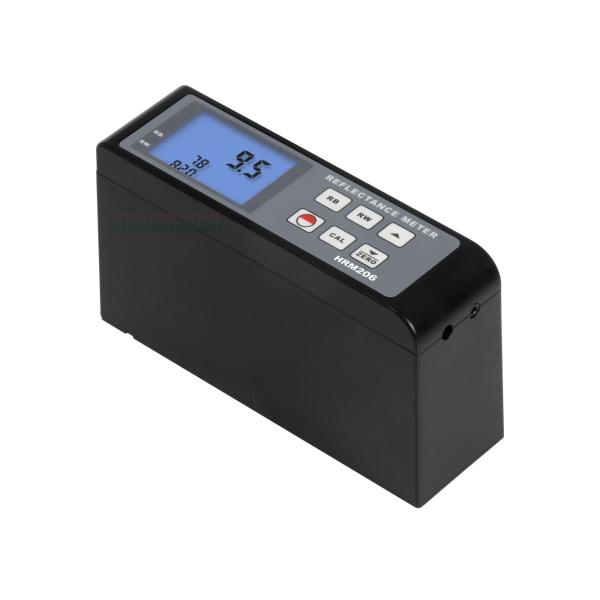

    Reflectance Meter HRM-206

    ISO3906-1980 (E), ISO3905, ISO2814 Bluetooth Reflectance Meter HRM-206

    Application

    It can not only measure the transparency extent of coating, grease, film, plastic products, organic products; but also the reflectivity of solid surface (such as stereo movie screen).

    Features

    * It is widely used in coatings, pigments, inks, plastics, printing and dyeing, leather, film screenings and other industries, for product quality or standardized inspection and management.
    * It meets the international standards of ISO3906-1980 (E), ISO3905, ISO2814, and the national standards of GB/T13452.3-92, GB9270-88, GB5211.17-88.
    * Use RS-232 data output to connect with PC.
    * Provide Bluetooth data output choice.
    * This instrument is composed of main unit, standard board (a black one and a white one), testing board (a black one and a white one).
    * When the reflected light of the sample acts on the surface of the photocell, an electric signal is input into the DC amplifier and amplified for reading on the display.


    ISO3906-1980 (E) ISO3905 ISO2814 Bluetooth Reflectance Meter HRM-206


    Specification

    Range0~100
    Resolution0.1
    Accuracy±1
    Repeatability0.3
    Measuring Area7x14mm (Ellipse)
    The display data is in direct proportion to the reflected light.
    The spectral sensitivity of the instrument is approximately equal to the product of Sc(λ) and y(λ).
    Operation Temp.0~40°C
    Operation Humidity<85%rh< span="">
    Power Supply3.7 V Lithium Ion Rechargeable Battery
    Size141x45x79mm
    Weight310g (Including Batteries)
    Stabdard AccessoriesMain Unit
    Standard Board (Black)
    Standard Board (White)
    Testing Board (Black)
    Testing Board (White)
    Power Adapter
    Optic Cleaning Cloth
    Carrying Case
    Operation Manual
    Optional AccessoriesUSB Data Cable with Software
    Bluetooth Data Adapter with Software
