Wall Handling And Handheld In Built Dosimeter 0.025eV~20MeV
Radiation Neutron Survey Meter
HUATEC DL805-N Network Neutron radiation monitoring system mainly for radioactive workplace for online real-time monitoring of
X-ray, gamma rays, and consists of a monitoring controller and
multiple detectors. Between controller and detector uses the 485
industrial control bus communication connection can also be
connected by wireless network communication. Real-time reflect the
dose rate of each probe points.
Instrument characteristics
Controller uses a high-speed embedded microcontroller
processor, touch screen graphical dot-matrix liquid crystal
display and humanization Input, English status bar tip
operation, controller wall and desktop (optional)
Real-time sampling, data refresh quickly handle per second
Calendar and clock function
Outliers way of sound and light alarm set
Can be stored in excess of the alarm threshold and abnormal alarm
record
Communications:
1,the standard RS485 interface, solve the similar communications
equipment manufacturer unreliable, transmission distance is not
long enough, communication problems in a wide range of cables
2,network communications, can realize the controller and detector,
controller and a variety of wireless devices, controllers and the
upper machine communication,
ZigBee mesh network of reliable and stable
3,GPRS or Internet to realize the global networking (optional)
4,video monitoring (cases)
Each detector alarm threshold can be set independently, at the same
time with upper and lower limit alarm function. Built-in fault detection, dose rate, overload alarm and protection
function, ensure the instruments work properly
Controller built-in sensors, can detect the controller around the
ray intensity (optional)
Main technical indicators
Neutron energy range:0.01μSv/h~100mSv/h
Neutron detector type: Li6
Neutron energy response: 0.025eV~20MeV
Testing Ray type: n
Detector fixing type: Wall handling/in-built
Operating environment :temperature, -20℃~+60℃,relative humidity (under 40 ℃ temperature ) ≤98%
System power supplement:DC 6V~24V (The standard 12 v electric switch)
Standard Delivery
1. Main Unit
2. Manual
3. Calibration Certificate
4. Connect Cable
Accessories Delivery:

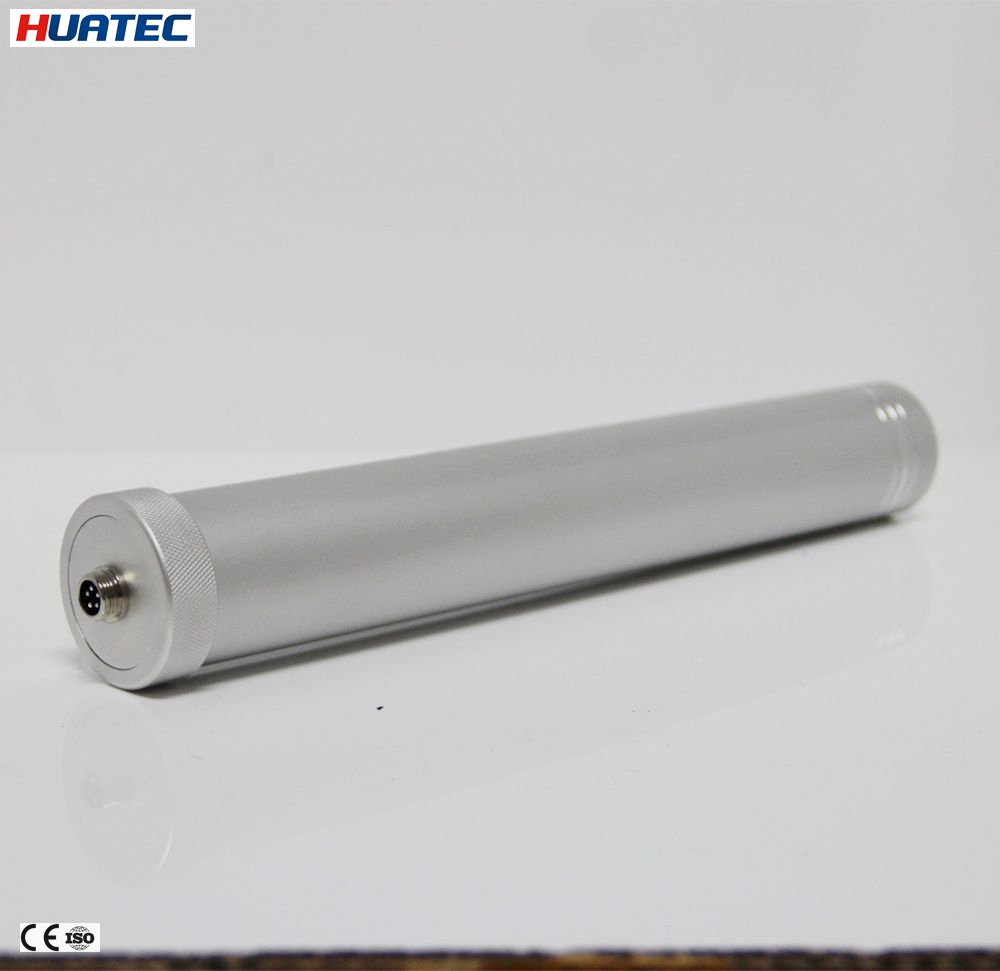

1. Li6 Neutron probe
Technical info
1,Measuring range: 0.01μSv/h~100mSv/h
2,Relative error: ≤10%
3,Energy response: 0.025eV~20MeV
4,Using environment: temperature: -20℃~+60℃, relative humidity: ≤98%( lower than 40℃)
5. power supply: DC 6V~24V
2. Gamma probe
Technical info
1,Measuring range: 0. 1μSv/h~30mSv/h, (can be expended upto 10sv/h)
2,Relative error: ≤10%
3. Sensitivity:≥350CPS/Sv/h
4,Energy response: 40Kev~3Mev
5,Using environment: temperature: -20℃~+60℃, relative humidity: ≤98%( lower than 40℃)
6. power supply: DC 6V~24V
Packaging Details
High quality level industry travel use suit case
Delivery Time
3~6 working days after confirm payment
